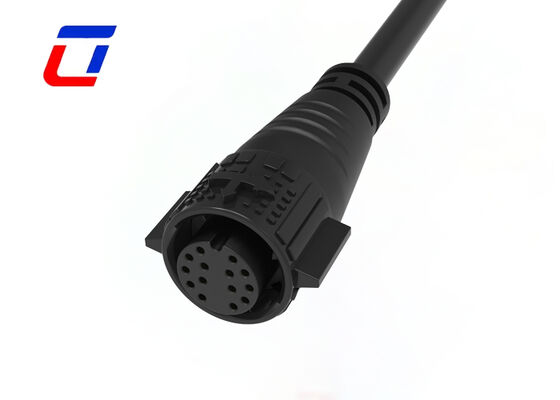

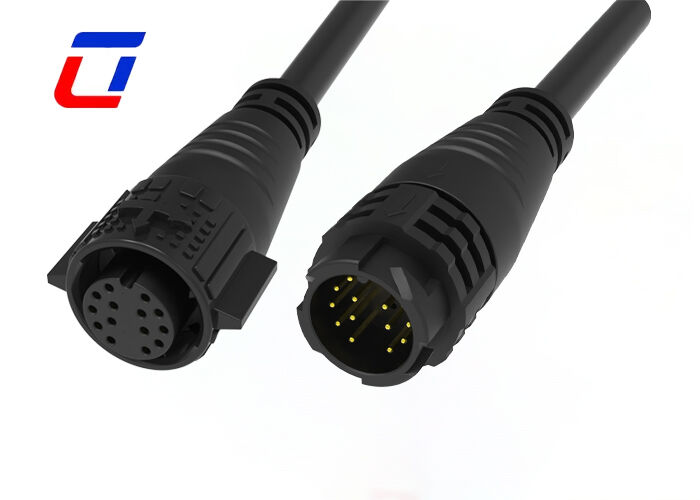

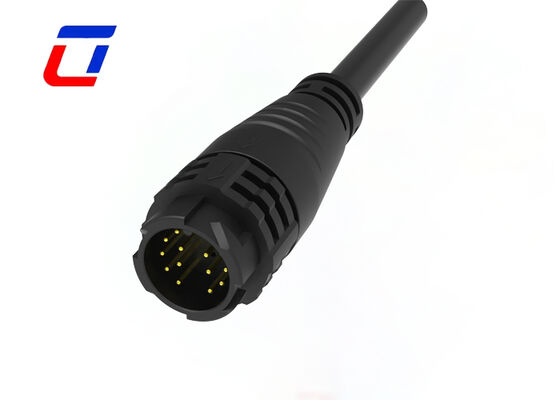

14 Pin Male Female Connector M19 300V Cable Connectors Waterproof
Quick Description
Superior Waterproof Performance: Adopting advanced sealing technology and a rugged housing structure, the connector achieves an excellent waterproof rating (IP67 or higher, depending on specific model). It effectively resists water immersion, moisture, and dust intrusion, ensuring stable operation in outdoor, underground, or damp environments such as outdoor lighting systems, marine equipment, and industrial washing areas.
Stable Electrical Conductivity: Equipped with 14 precision-engineered pins, the connector ensures low contact resistance and consistent electrical performance. With a rated voltage of 300V, it is suitable for a wide range of low-voltage applications, providing reliable power and signal transmission without signal loss or electrical interference.
This model connectors is specialized for various Power Signal applications, easy ooperation design in push locking system, just need a second to insert, then it will lock automatically.
In This model connector, Power & Singal together in one set design is getting more and more popular to many device, which solve the power and signal connector separated using perfectly, especially for the space limited application.
Cable assembly available for Multi pin Connectors is supported in Ulinkcon,just please share cable request in details, custom service available.
Main Features
- Push lock quick release system
- Multic-core options: 2Pin,3Pin,4Pin,5Pin for Power
- 3+2Pin,3+3Pin,3+4Pin,3+5Pin,3+9Pin and 2+20Pin for power signal combined
- 6Pin,7Pin,8Pin,9Pin,10Pin,11Pin,12Pin,14Pin,16Pin and 18Pin for signal available
- Field assembly version:both wire to wire and wire to board options
- Current rated 20A for long time working
- Cable assembly service supported, welcome to custom
- OEM/ODM welcome
| Electrical Parameters |
| Number of Poles |
12Pin |
| Current Rating |
5 Amax. |
| Voltage Rating |
300VAC max |
| Durability Voltage |
1500VAC @ 60 s. |
| Technical Parameters |
| Contact Resistance |
10 mΩ max |
| Insulation Structure |
500 MΩ at 500VDC |
| Operating Temperature |
-40°C ~ +105°C |
| IP Class |
IP67 (1m / 30min) when mated |
| Mold Material |
PA66 |
| Contact/Terminal Material |
Gold Plated Brass |
| Seal Material |
Silicone |
| Operation Parameters |
| Voltage Rating |
300VAC max |
| Current Rating |
5A max |
| Min Wire Size OD |
3.0mm ~ 6.0mm |
| Max Wire Size OD |
8.0mm ~ 10.0mm |
| Max.Cable Cross Section Area |
0.5mm2 ~ 2.5mm2 |
Application industries
- Growth Lights
- Communications Application
- product coding machines
- inventory product coding
- inkjet systems
- Solar System
- industrial inkjet equipment
- Electric power equipment
- Laboratory forensic&pathology equipment
- Communications equipment
- Heavy machinery
Design Sketch
