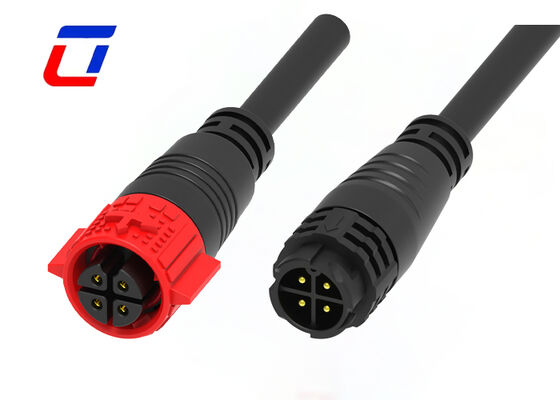

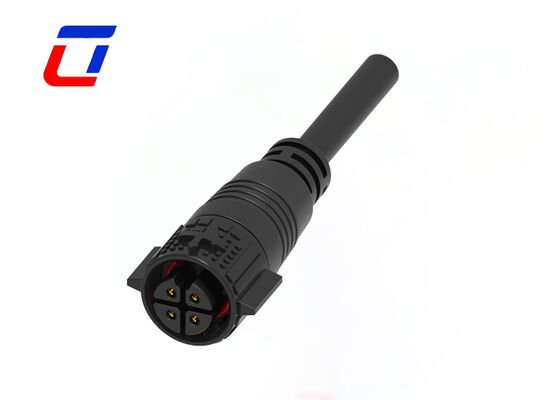

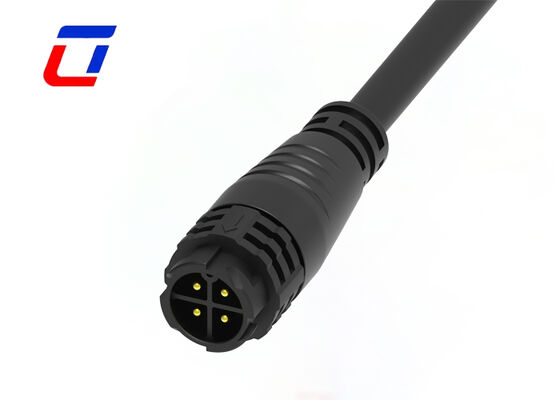

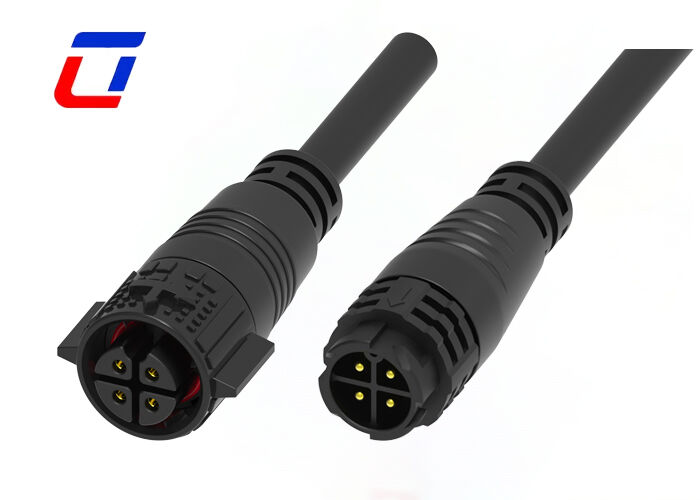

Name: M19 15A 4 Pin Wire To Wire Connector IP67 Push Lock Outdoor Power Connectors
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Startseite Produkte Wasserdichtes männlich-weibliches Verbindungsstück

M19 15A 4 Pin Wire To Wire Connector IP67 Push Lock Outdoor Power Connectors

Produktdetails:

Herkunftsort:	China
Markenname:	Ulinkcon
Zertifizierung:	CE/Rohs/TUV/UL
Modellnummer:	M19

Zahlung und Versand AGB:

Min Bestellmenge:	Verhandlung
Preis:	Verhandlungsfähig
Verpackung Informationen:	1.Plastiktüte;2. Karton;3. je nach Kundenanforderung
Lieferzeit:	3 bis 6 Arbeitstage
Zahlungsbedingungen:	T/T, D/P, L/C, D/A, Western Union, MoneyGram
Versorgungsmaterial-Fähigkeit:	100000 Paare Montly

Kontakt

Ausführliche Produkt-Beschreibung

STIFT:	4Pin	Aktuelle Bewertung:	15A
Nennspannung:	300V	Material:	Nylon
Farbe:	Rot Blau Weiß Schwarz Gelb	Flammwidrigkeitsklasse:	UL94-V0
Hervorheben:	M19 waterproof wire connector , 15A 4 pin push lock connector , IP67 outdoor power connector

IP67 Waterproof M19 4 Pin Wire To Wire Outdoor Connector

Quick Description

This M19 4-pin wire-to-wire power connector, featuring 15A current capacity, IP67 waterproof rating and push-lock design, is tailored for complex outdoor environments. the direct wire-to-wire connection eliminates the need for adapters. The push-lock structure enables one-press locking, ensuring easy installation and anti-loosening, making it a reliable choice for outdoor equipment power connection.

In terms of performance, it balances stability and protection: copper alloy contacts reduce transmission loss, and the 15A current capacity meets the needs of most outdoor equipment; IP67 waterproof and dustproof rating resists rain, spray and dust intrusion. Insulated materials prevent leakage effectively, compatible with low-voltage power systems for safer outdoor use.

The structural design focuses on practicality: the M19 housing is made of weather-resistant engineering plastic, which can work normally in environments from -40℃ to 105℃; the push-lock and foolproof design avoids wrong insertion and accidental loosening; the tail is compatible with 1.5-2.5mm² wires, integrating sealing and fixing to further improve outdoor adaptability.

Widely used in outdoor lighting, security monitoring, gardening equipment, camping power supplies and other scenarios, it can transmit power stably whether in rainy days or dusty environments, enabling efficient and worry-free installation and maintenance.

Main Features

Push lock quick release system
Multic-core options are availabled: 2Pin,3Pin,4Pin,5Pin for power
3+2Pin,3+3Pin,3+4Pin,3+5Pin,3+9Pin and 2+20Pin for power signal combined
6Pin,7Pin,8Pin,9Pin,10Pin,11Pin,12Pin,14Pin,16Pin and 18Pin for signal available
Field assembly version:both wire to wire and wire to board options
Current rated 15A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Electrical Parameters
Number of Poles	4Pin
Current Rating	15A max.
Voltage Rating	300VAC max
Durability Voltage	1000VAC @ 60 s.

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters
Voltage Rating	600VAC max
Current Rating	15A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max.Cable Cross Section Area	1.5mm² ~ 2.5mm²

Application industries

Growth Lights
Communications Application
product coding machines
inventory product coding
inkjet systems
Solar System
industrial inkjet equipment
Electric power equipment
Laboratory forensic&pathology equipment
Communications equipment
Heavy machinery

Design Sketch

FAQ

1. Q: Are you a factory or trading company?
A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District,Shenzhen,China

2. Q: Do you support product customization?
A: Yes, customization is available for specifications, colors, logos, and packaging. Please provide your detailed requirements, and we will quote accordingly with a sample confirmation process.

3. Q: How can I get samples?

A: It's my honor to offer you samples,and the freight should be paied by yourself.You can let me know your courier number and your detail address,Then I can send you sample at once.

4. Q: Can I pay after receiving the goods?

A: For first - time cooperation, advance payment is required to ensure production smoothness. For long - term trusted clients, flexible payment terms can be discussed after several successful orders.

M19 15A 4 Pin Wire To Wire Connector IP67 Push Lock Outdoor Power Connectors 2
