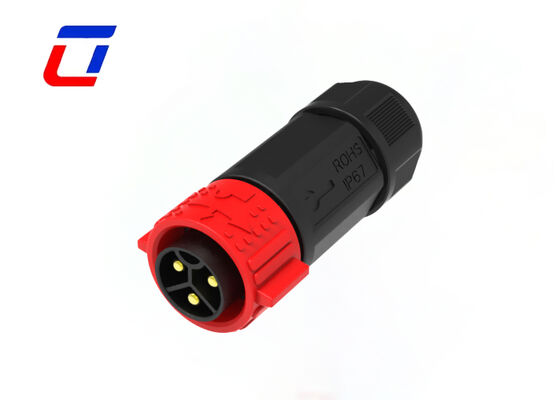

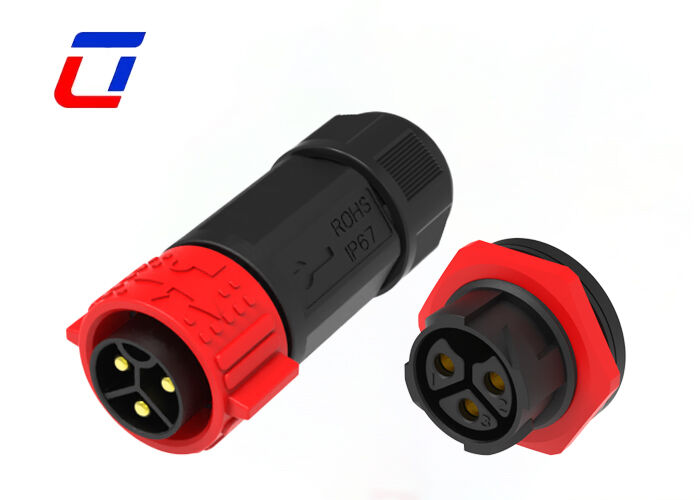

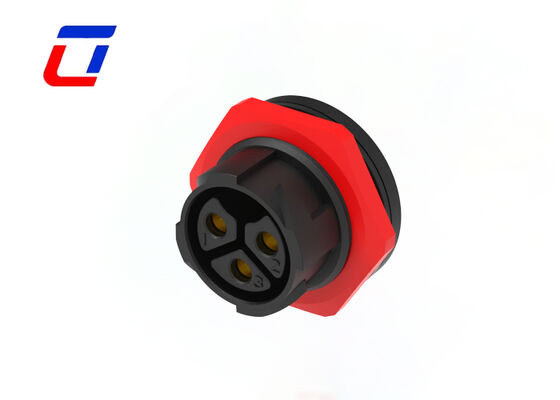

3 Pin Waterproof Connector M25 Red Board Power Connector To Heavy Machinery

Produktdetails:

Herkunftsort:	China
Markenname:	Ulinkcon
Zertifizierung:	CE,TUV,UL,RoHS
Modellnummer:	M25

Zahlung und Versand AGB:

Min Bestellmenge:	Verhandlung
Preis:	Verhandlungsfähig
Verpackung Informationen:	Hochwertiger Exportkarton
Lieferzeit:	3 bis 6 Arbeitstage
Zahlungsbedingungen:	T/T,D/A,D/P,MoneyGram,L/C,Western Union
Versorgungsmaterial-Fähigkeit:	100000 Paare pro Monat

Kontakt

Ausführliche Produkt-Beschreibung

Aktuell:	50A max. für Macht	Anzahl der Pins:	3-polig für Strom
Betriebsspannung:	300V	Wasserdichtigkeitsklasse:	IP67
Betriebstemperatur:	-40℃-+105℃	Flammwidrigkeitsklasse:	UL94-V0
Hervorheben:	3 pin waterproof power connector , M25 waterproof connector for machinery , heavy duty waterproof power connector

Industrial Wire To Board Connector M25 3 Pin 50A IP67 Waterproof Connector

Description:

Core Structure and Specifications: Adopts a 3Pin board-mounted design, accurately matching the power supply needs of heavy machinery circuit boards. The pin spacing is optimized to ensure dual stability of signal transmission and power supply; the interface specification is M25 standard, with good versatility, compatible with reserved interfaces of multiple heavy machinery models, reducing replacement and adaptation costs.

Professional Waterproof Protection Performance: Focuses on high-level waterproof design. The shell adopts a sealed structure with high-quality waterproof rubber rings, which can effectively resist the erosion of rainwater, dust, oil stains and humid environments. It is suitable for outdoor open-air operations or heavy machinery working scenarios with high dust and oil stains, avoiding short circuits, poor contact and other faults caused by environmental factors.

Material and Appearance Design: The conductor is made of high-conductivity copper alloy material, which has been specially treated to improve wear resistance and aging resistance, ensuring low energy consumption and stability under long-term high-load power supply; the shell is made of red insulating material, which not only has excellent insulating performance, but also can be quickly identified in the complex internal environment of machinery, facilitating installation, maintenance and repair.

Advantages of Board-Mounted Connection: Uses board-mounted fixing method, which can be directly closely installed with the control circuit board of heavy machinery. It has high connection firmness, can resist severe vibration and jolt generated during heavy machinery operation, avoids loosening problems of traditional plug-in connectors caused by vibration, and extends service life.

Exclusive Adaptation Scenarios: Tailor-made for heavy machinery, widely used in power connection and signal transmission of engineering excavators, loaders, cranes, mining machinery and other equipment; it can also be adapted to auxiliary control components of heavy machinery, such as power supply for circuit boards of hydraulic systems and braking systems, providing reliable connection guarantee for stable operation of heavy machinery.

Application industries

Communications Application
product coding machines
inventory product coding
inkjet systems
Solar System
industrial inkjet equipment
Electric power equipment
Laboratory forensic&pathology equipment
Communications equipment
Heavy machinery

Quick Details of IP67 waterproof Connector

This model of connectors is engineered for a wide range of integrated power and signal applications, boasting an intuitive push-to-lock mechanism. Insertion takes just one second, with the connector locking securely automatically—no complex operations required.

The integrated power-and-signal all-in-one design is gaining escalating popularity across diverse equipment. It effectively eliminates the need for separate power and signal connectors, offering an optimal solution especially for space-constrained installations.

Ulinkcon provides professional cable assembly solutions for multi-pin connectors. Simply submit your detailed cable specifications (e.g., gauge, length, insulation type), and our comprehensive customization support is readily available to meet your specific requirements.

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters
Voltage Rating	500VAC max
Current Rating	50A max
Min Wire Size OD	6.5mm ~ 10mm
Max Wire Size OD	10.5mm ~ 18mm
Max.Cable Cross Section Area	0.5mm² ~ 6.0mm²

Product Configuration

FAQ

1. Q: Are you a factory or trading company?
A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District,Shenzhen,China

2. Q: Do you support product customization?
A: Yes, customization is available for specifications, colors and packaging. Please provide your detailed requirements, and we will quote accordingly with a sample confirmation process.

3. Q: How can I get samples?

A: It's my honor to offer you samples,and the freight should be paied by yourself.You can let me know your courier number and your detail address,Then I can send you sample at once.

4. Q: What is your Minimum Order Quantity (MOQ)?

A: The MOQ varies by product type—usually 500 units for standard models and 1000 units for customized items. Lower MOQ can be negotiated for trial orders or long - term cooperation.
