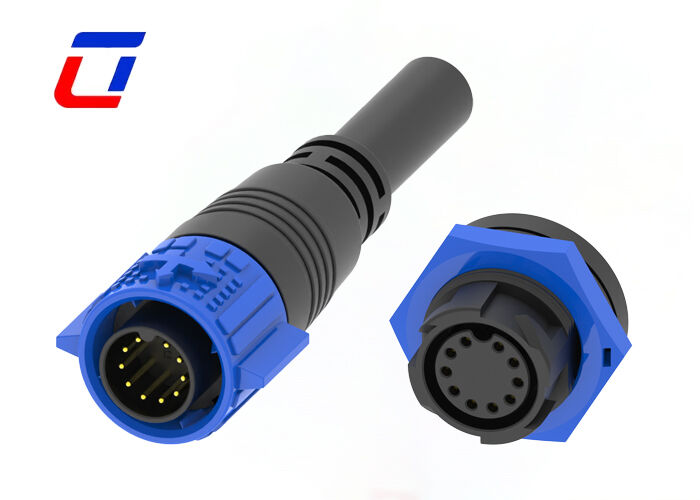

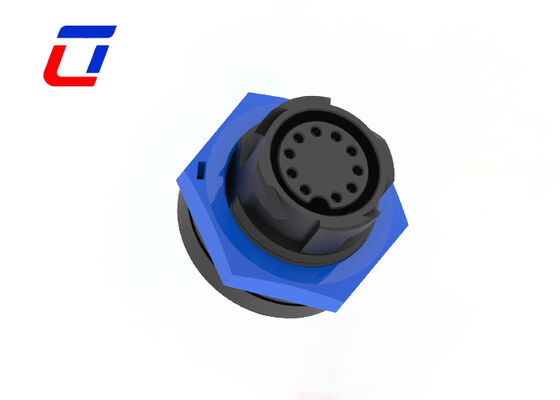

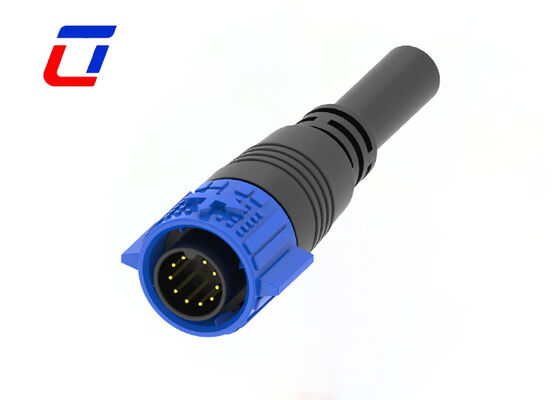

Name: M19 10Pin Waterproof Outdoor Connectors Low Power Signal Plug And Socket Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Startseite Produkte Wasserdichter Stecker-Sockel

M19 10Pin Waterproof Outdoor Connectors Low Power Signal Plug And Socket Connector

Produktdetails:

Herkunftsort:	China
Markenname:	Ulinkcon
Zertifizierung:	CE/Rohs/TUV/UL
Modellnummer:	M19

Zahlung und Versand AGB:

Min Bestellmenge:	Verhandlung
Preis:	Verhandlungsfähig
Verpackung Informationen:	1.Plastiktüte;2. Karton;3. je nach Kundenanforderung
Lieferzeit:	3 bis 6 Arbeitstage
Zahlungsbedingungen:	T/T, D/P, L/C, D/A, Western Union, MoneyGram
Versorgungsmaterial-Fähigkeit:	100000 Paare Montly

Kontakt

Ausführliche Produkt-Beschreibung

Stift:	10Pin	Material:	Nylon
Aktuelle Bewertung:	5A	Nennspannung:	300V
Geschlecht:	Von Mann zu Frau	Typ:	Stecker/Sockel
Hervorheben:	M19 waterproof outdoor connectors , 10Pin low power signal connector , waterproof plug socket connector

M19 10 Pin Waterproof Quick Disconnect Wire To Board Connectors

Quick Description

Scenario Adaptation Positioning: Customized specifically for outdoor low-power signal transmission scenarios, adopts M19 standard circular structure, paired with male-female plug and socket design, 10Pin multi-channel layout can simultaneously carry multiple groups of low-power signals, adapting to signal collection and transmission needs in complex outdoor environments
Core Signal Specifications: Interface specification M19, equipped with 10Pin signal-dedicated pin cores, focusing on low-power signal transmission, supports male-female quick docking, precise pin positioning to avoid signal misconnection, meeting the basic needs of parallel transmission of multiple groups of signals
Outdoor Protection Design: Adopts integrated waterproof sealing structure, effectively resisting outdoor rain erosion, dust intrusion, dew condensation and ultraviolet radiation; the shell is made of weather-resistant engineering plastic, with excellent high and low temperature resistance (-40℃~105℃) and anti-aging performance, adapting to complex outdoor climate environments
Signal Transmission Performance: Optimized design for low-power signals, the pin cores adopt brass gold-plating process, with extremely low contact resistance, low signal transmission loss and strong anti-interference ability, which can effectively avoid distortion and attenuation problems during low-power signal transmission and ensure signal transmission clarity
Male-Female Connection Advantages & Applications: The male-female plug and socket adopt snap-on connection design, with smooth plugging and firm locking, excellent anti-vibration and anti-fall performance; widely used in outdoor sensor signal collection, intelligent security monitoring signal transmission, outdoor lighting control systems, portable electronic equipment signal docking, environmental monitoring instruments and other low-power signal outdoor connection scenarios

Electrical Parameters
Number of Poles	10Pin
Current Rating	5A max.
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.

Application industries

Growth Lights
Communications Application
product coding machines
inventory product coding
inkjet systems
Solar System
industrial inkjet equipment
Electric power equipment
Laboratory forensic&pathology equipment
Communications equipment
Heavy machinery

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Main Features

Push lock quick release system
Multic-core options: 2Pin,3Pin,4Pin,5Pin for Power
3+2Pin,3+3Pin,3+4Pin,3+5Pin,3+9Pin and 2+20Pin for power signal combined
6Pin,7Pin,8Pin,9Pin,10Pin,11Pin,12Pin,14Pin,16Pin and 18Pin for signal available
Field assembly version:both wire to wire and wire to board options
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Operation Parameters
Voltage Rating	300VAC max
Current Rating	5A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max.Cable Cross Section Area	0.5mm² ~ 2.5mm²

Design Sketch

M19 10Pin Waterproof Outdoor Connectors Low Power Signal Plug And Socket Connector 1

FAQ

1. Q: Are you a factory or trading company?
A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District,Shenzhen,China

2. Q: How can I get samples?

A: It's my honor to offer you samples,and the freight should be paied by yourself.You can let me know your courier number and your detail address,Then I can send you sample at once.

3. Q: How many materials you can provide?
A: There's some different materials from connector and cable, we usually use PVC/Nylon material to product connector, PVC/Rubber/Silicone material was used in cable. Of course we can also according to your requirments to choose the material.
