Name: 300V M19 10 Pin Wire To Board Power Connector Quick Lock Waterproof Plug Socket
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Startseite Produkte Wasserdichtes Datenanschluss

300V M19 10 Pin Wire To Board Power Connector Quick Lock Waterproof Plug Socket

Produktdetails:

Herkunftsort:	China
Markenname:	Ulinkcon
Zertifizierung:	CE/Rohs/TUV/UL
Modellnummer:	M19

Zahlung und Versand AGB:

Min Bestellmenge:	Verhandlung
Preis:	Verhandlungsfähig
Verpackung Informationen:	1. Plastiktüte; 2. Karton; 3. Gemäß den Anforderungen des Kunden
Lieferzeit:	3~6 Werktage
Zahlungsbedingungen:	T/T, D/P, L/C, D/A, Western Union, MoneyGram
Versorgungsmaterial-Fähigkeit:	100.000 Paar pro Monat

Kontakt

Ausführliche Produkt-Beschreibung

Stift:	10Pin	Material:	Nylon
Aktuelle Bewertung:	5A	Geschlecht:	Von Mann zu Frau
Typ:	Stecker/Sockel	Kontaktmaterial:	Messing vergoldet
Hervorheben:	300V waterproof power connector , M19 10 pin wire connector , quick lock waterproof plug socket

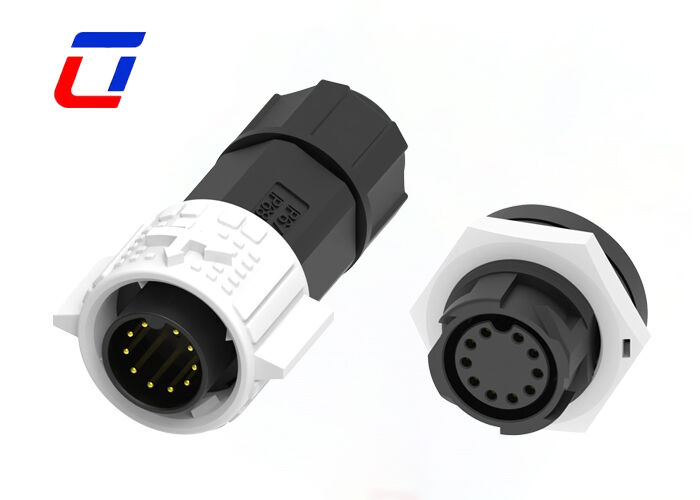

300V M19 10 Pin Wire To Board Power Connector Quick Lock Waterproof Plug Socket

Product Overview

M19 10 Pin Waterproof Quick Disconnect Wire To Board Connectors

Key Specifications

Electrical Specifications: Rated voltage 300V DC/AC, 10Pin configuration, single Pin rated current 5A (suitable for multi-circuit parallel power supply), supporting stable power transmission and meeting industrial medium and low voltage power supply standards
Structural Specifications: M19 standard circular structure, conforming to industrial universal interface dimensions, compatible with wire diameter range 18-26AWG, supporting Wire To Board connection mode, male-female pairing design, suitable for panel mounting and cable docking
Environment & Service Life: Operating temperature range -40℃~+105℃, resistant to extreme high and low temperature environments; mechanical mating life ≥1500 cycles, meeting long-term repeated operation and maintenance needs
Applications: Industrial automation control equipment, outdoor LED display power supply, new energy industrial facilities, marine electrical systems, heavy machinery control panels, outdoor sensor arrays, medical equipment (portable diagnostic instruments) and other Wire To Board power transmission scenarios requiring high reliability, waterproof and dustproof, and quick connection

Electrical Parameters

Number of Poles	10Pin
Current Rating	5A max.
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.

Application Industries

Growth Lights
Communications Application
Product Coding Machines
Inventory Product Coding
Inkjet Systems
Solar System
Industrial Inkjet Equipment
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Communications Equipment
Heavy Machinery

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Main Features

Push lock quick release system
Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin for Power
3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin for power signal combined
6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin for signal available
Field assembly version: both wire to wire and wire to board options
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Operation Parameters

Voltage Rating	300VAC max
Current Rating	5A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max. Cable Cross Section Area	0.5mm² ~ 2.5mm²

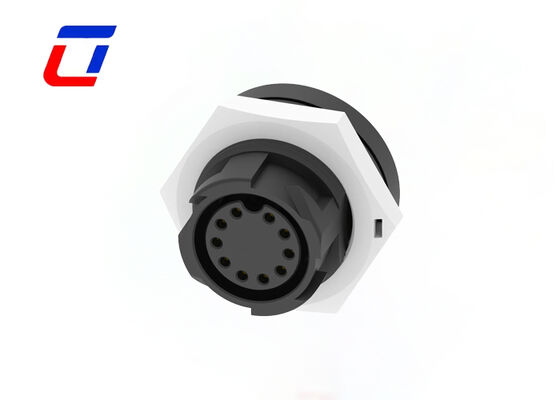

Design Sketch
