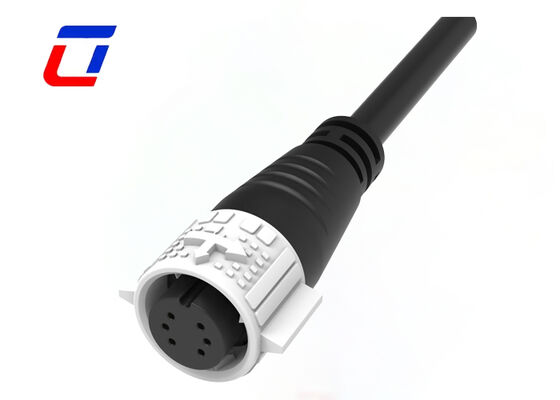

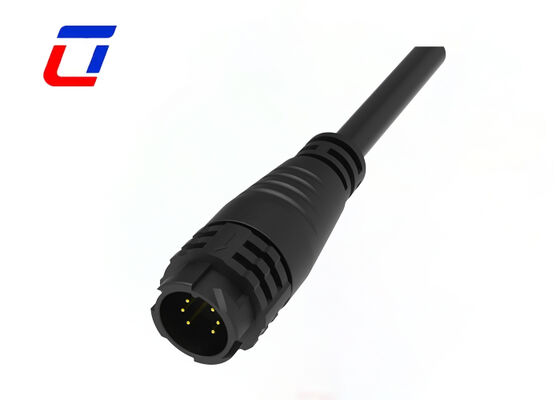

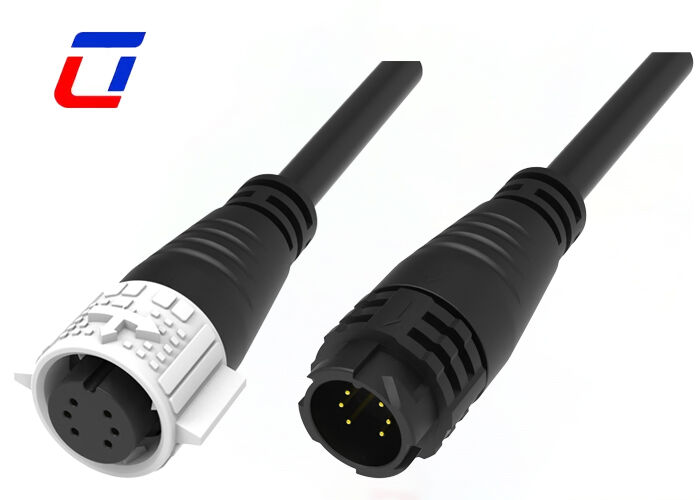

Name: Male And Female Wire Connector M19 6 Pin Outdoor Waterproof Connectors For Data
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Startseite Produkte Wasserdichtes Datenanschluss

Male And Female Wire Connector M19 6 Pin Outdoor Waterproof Connectors For Data

Produktdetails:

Herkunftsort:	China
Markenname:	Ulinkcon
Zertifizierung:	CE/Rohs
Modellnummer:	M19

Zahlung und Versand AGB:

Min Bestellmenge:	Verhandlung
Preis:	Verhandlungsfähig
Verpackung Informationen:	Hochwertiger Exportkarton
Lieferzeit:	3 bis 6 Arbeitstage
Zahlungsbedingungen:	T/T,D/A,D/P,MoneyGram,L/C
Versorgungsmaterial-Fähigkeit:	100000 Paare pro Monat

Kontakt

Ausführliche Produkt-Beschreibung

Anzahl der Pins:	6Pin	Aktuell:	10A
Nennspannung:	300V	Wasserdichtigkeitsklasse:	IP67
Farbe:	Rot Blau Weiß Schwarz Gelb	Temperatur:	-40~+105℃
Hervorheben:	M19 6 pin waterproof connector , outdoor waterproof data connector , male female wire connector waterproof

M19 6-Pin Outdoor Waterproof Data Connector

Product Overview

This industrial-grade M19 6-pin waterproof connector is specifically engineered for outdoor data transmission applications. Featuring excellent sealing performance and stable conductivity, it provides reliable data connections for outdoor electronic equipment. The male-female pairing design ensures precise 6-pin core connections for efficient transmission of various low-current data signals.

Key Features

IP67 rated waterproof and dustproof protection
Push-lock quick release system for easy installation
High-conductivity brass terminals with gold plating
Wide operating temperature range: -40°C to +105°C
Weather-resistant PA66 housing material
Multiple pin configurations available (2-20 pins)
Wire-to-wire and wire-to-board assembly options
10A maximum current rating for continuous operation
Custom cable assembly and OEM/ODM services available

Electrical Specifications

Number of Poles	6-pin configuration
Current Rating	10A maximum
Voltage Rating	300V AC maximum
Durability Voltage	1000V AC @ 60 seconds

Technical Specifications

Contact Resistance	10 mΩ maximum
Insulation Resistance	500 MΩ at 500V DC
Operating Temperature	-40°C to +105°C
IP Rating	IP67 (1 meter / 30 minutes)
Housing Material	PA66
Contact Material	Gold-plated brass
Seal Material	Silicone

Application Industries

Communications equipment
Industrial inkjet systems and coding machines
Solar power systems
Electric power equipment
Laboratory and forensic equipment
Heavy machinery
Security monitoring systems
Smart agriculture
Industrial automation
New energy equipment

Product Dimensions

Technical Details

Frequently Asked Questions

What is rated voltage?

Rated voltage, also known as operating voltage, depends on the connector's insulation material and contact spacing. Some components may not function properly below their rated voltage specification.

Are your products certified? What certifications do you have?

All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market requirements.

What is your Minimum Order Quantity (MOQ)?

The MOQ varies by product type—typically 500 units for standard models and 1000 units for customized items. Lower MOQ can be negotiated for trial orders or long-term cooperation agreements.
