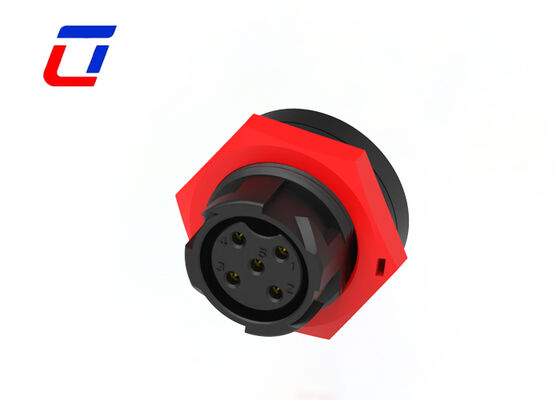

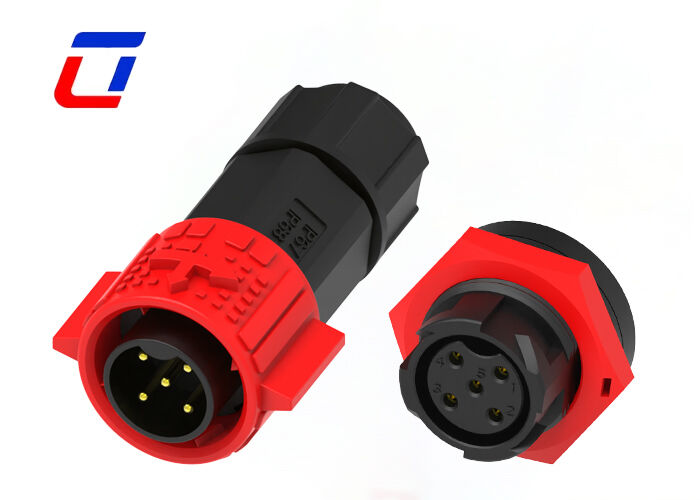

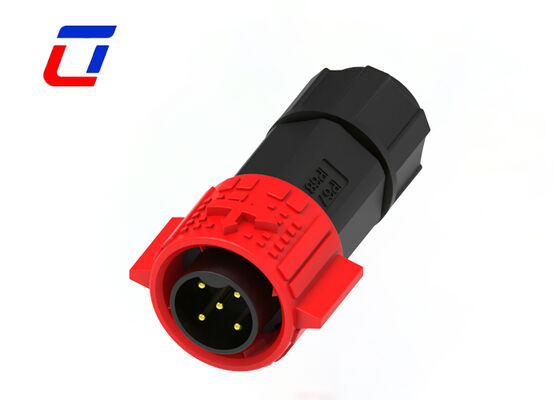

Name: M19 Watertight Power Connector 300V 5 Pin Panel Mount Quick Lock Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Startseite Produkte Wasserdichtes Kreislaufanschluss

M19 Watertight Power Connector 300V 5 Pin Panel Mount Quick Lock Connector

Produktdetails:

Herkunftsort:	China
Markenname:	Ulinkcon
Zertifizierung:	CE/Rohs/TUV/UL
Modellnummer:	M19

Zahlung und Versand AGB:

Min Bestellmenge:	Verhandlung
Preis:	Verhandlungsfähig
Verpackung Informationen:	1. Plastiktüte; 2. Karton; 3. Gemäß den Anforderungen des Kunden
Lieferzeit:	3~6 Werktage
Zahlungsbedingungen:	T/T, D/P, L/C, D/A, Western Union, MoneyGram
Versorgungsmaterial-Fähigkeit:	100.000 Paar pro Monat

Kontakt

Ausführliche Produkt-Beschreibung

Nennspannung:	300V	Stift:	5Pin
Flammwidrigkeitsklasse:	UL94-V0	Geschlecht:	Von Mann zu Frau
Betriebstemperatur:	-40℃~+105℃	Material:	PA66
Hervorheben:	M19 waterproof power connector 300V , 5 pin panel mount connector , quick lock waterproof circular connector

M19 Watertight Power Connector 300V 5 Pin Panel Mount Quick Lock Connector

Product Overview

5 Pin Circular M19 PA66 300V Male To Female Waterproof Connector designed for reliable power transmission in demanding environments.

Main Features

Push lock quick release system for easy connection
Multiple pin configurations: 2Pin, 3Pin, 4Pin, 5Pin for power applications
Combined power and signal options: 3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin
Signal-only variants: 6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin
Field assembly versions available for wire-to-wire and wire-to-board applications
Rated for 20A continuous current operation
Cable assembly services supported with custom options
OEM/ODM partnerships welcome

Product Description

Constructed from high-strength PA66 material, this M19 5-pin circular connector supports 300V high-voltage transmission. Featuring a male-to-female design with IP67 waterproof and dustproof rating, it's ideal for diverse power connection scenarios. High-conductivity gold-plated brass pins minimize transmission loss, while the PA66 housing withstands extreme temperatures (-40℃ to +105℃), corrosion, and aging. Equipped with foolproof alignment and secure locking mechanism, it ensures safe and reliable plugging operations. Widely used in industrial control systems, high-voltage lighting, and outdoor testing equipment.

Electrical Parameters

Number of Poles	5Pin
Current Rating	20A maximum
Voltage Rating	300VAC maximum
Durability Voltage	1000VAC @ 60 seconds

Technical Parameters

Contact Resistance	10 mΩ maximum
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C to +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Voltage Rating	600VAC maximum
Current Rating	15A maximum
Minimum Wire Size OD	3.0mm to 6.0mm
Maximum Wire Size OD	8.0mm to 10.0mm
Maximum Cable Cross Section Area	0.5mm² to 2.5mm²

Application Industries

Growth Lights
Communications Equipment
Product Coding Machines
Inventory Product Coding Systems
Inkjet Systems
Solar Systems
Industrial Inkjet Equipment
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Heavy Machinery

Product Design

Frequently Asked Questions

Do you accept other payment currencies besides USD?

Our default currency is USD, but we can also accept EUR, GBP, or other major currencies. Please confirm the exchange rate with our sales team when placing the order.

Are your products certified? What certifications do you have?

All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.

How can I get samples?

We are pleased to offer samples for evaluation. Shipping costs are the responsibility of the customer. Please provide your courier account number and detailed shipping address, and we will dispatch samples promptly.
