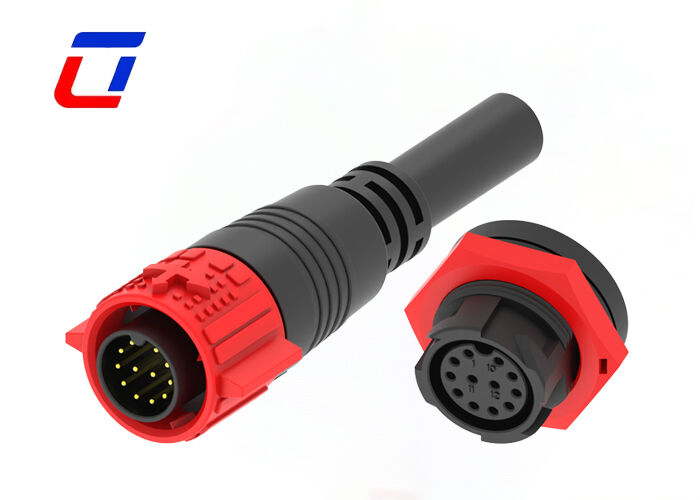

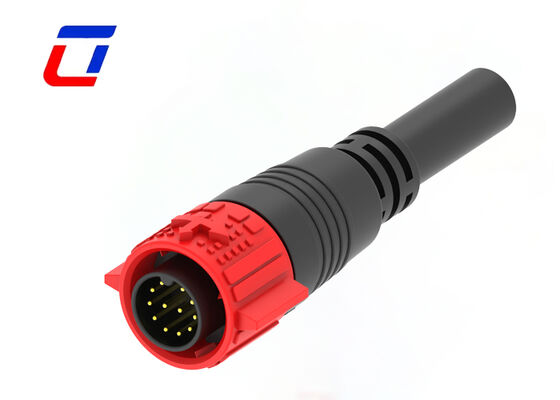

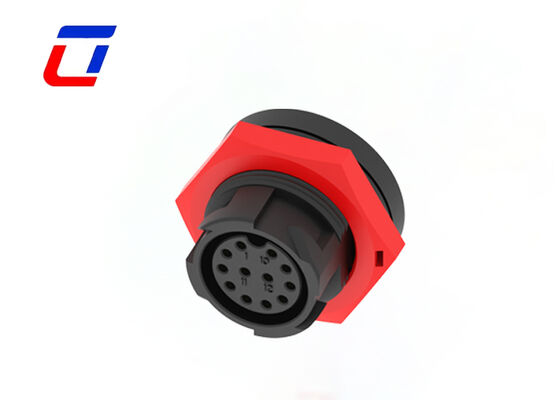

Name: M19 12 Pin Waterproof Cable Connector IP67 300V Led Quick Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Startseite Produkte Wasserdichtes Datenanschluss

M19 12 Pin Waterproof Cable Connector IP67 300V Led Quick Connector

Produktdetails:

Herkunftsort:	China
Markenname:	Ulinkcon
Zertifizierung:	CE/Rohs/TUV/UL
Modellnummer:	M19

Zahlung und Versand AGB:

Min Bestellmenge:	Verhandlung
Preis:	Verhandlungsfähig
Verpackung Informationen:	1. Plastiktüte; 2. Karton; 3. Gemäß den Anforderungen des Kunden
Lieferzeit:	3~6 Werktage
Zahlungsbedingungen:	T/T, D/P, L/C, D/A, Western Union, MoneyGram
Versorgungsmaterial-Fähigkeit:	100.000 Paar pro Monat

Kontakt

Ausführliche Produkt-Beschreibung

Aktuelle Bewertung:	5A	Stift:	12Pin
Geschlecht:	Von Mann zu Frau	Steckertyp:	Schnellverbinder
Material:	Nylon	Betriebstemperatur:	-40℃-+105℃
Hervorheben:	M19 waterproof cable connector IP67 , 12 pin LED quick connector 300V , waterproof data connector with warranty

M19 12 Pin Waterproof Cable Connector IP67 300V LED Quick Connector

This High-Stability PA66 M19 12 Pin Waterproof Quick-Connect Wire-to-Board Connector is engineered for efficient, stable signal and power transmission between wires and circuit boards. Utilizing premium PA66 engineering plastic and precision structural design, this connector delivers reliable waterproofing, fast docking capabilities, and excellent environmental interference resistance. Ideal for wire-to-board connections in industrial automation, smart home appliances, outdoor electronic equipment, and security systems.

Premium Material Construction

Built with high-purity PA66 engineering plastic, this connector offers robust mechanical strength, impact resistance, and superior anti-aging performance. It withstands daily bumps, wear, and long-term environmental exposure while maintaining structural integrity across a wide temperature range of -40℃ to 105℃.

Main Features

Push lock quick release system for easy connection
Multiple core configurations available: 2Pin, 3Pin, 4Pin, 5Pin for power applications
Power-signal combined options: 3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin, and 2+20Pin
Signal-only variants: 6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin, and 18Pin
Field assembly versions supporting both wire-to-wire and wire-to-board connections
Rated for 5A continuous current operation
Cable assembly services available with custom options
OEM/ODM services welcome

Technical Specifications

Electrical Parameters

Number of Poles	12 Pin
Current Rating	5A max
Voltage Rating	60VAC max
Durability Voltage	500VAC @ 60s

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Voltage Rating	300VAC max
Current Rating	5A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max Cable Cross Section Area	0.5mm² ~ 2.5mm²

Application Industries

Growth Lights
Communications Equipment
Product Coding Machines
Inventory Product Coding Systems
Inkjet Systems
Solar Systems
Industrial Inkjet Equipment
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Heavy Machinery

Product Design

Frequently Asked Questions

Are your products certified? What certifications do you have?

All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market requirements.

Do you accept other payment currencies besides USD?

Our default currency is USD, but we can also accept EUR, GBP, or other major currencies. Please confirm the exchange rate with our sales team when placing your order.

Can I have custom labeling?

Yes, we support custom private labeling and packaging. Our professional design team is available to assist with packaging design according to your specifications.

What is rated voltage?

Rated voltage, also known as operating voltage, depends on the connector's insulation material and contact spacing. This specification indicates the maximum voltage at which the connector can safely operate while maintaining its intended functionality.
