PA66 M16 300V 2 Pin Male Female Connector 10A Wire To Board Connector Types

Produktdetails:

Herkunftsort:	China
Markenname:	Ulinkcon
Zertifizierung:	CE/Rohs/TUV/UL
Modellnummer:	M16

Zahlung und Versand AGB:

Min Bestellmenge:	Verhandlung
Preis:	Verhandlungsfähig
Verpackung Informationen:	Hochwertiger Exportkarton
Lieferzeit:	3 bis 6 Arbeitstage
Zahlungsbedingungen:	T/T,D/A,D/P,MoneyGram,L/C
Versorgungsmaterial-Fähigkeit:	100000 Paare pro Monat

Kontakt

Ausführliche Produkt-Beschreibung

Anzahl der Pins:	2Pin	Aktuell:	10A max. für Macht
Nennspannung:	300V	Wasserdichtigkeitsklasse:	IP67
Flammwidrigkeitsklasse:	UL94-V0	Farbe:	Blau/Grün/Gelb/Rot
Hervorheben:	PA66 M16 waterproof power connector , 2 pin wire to board connector , 300V 10A male female connector

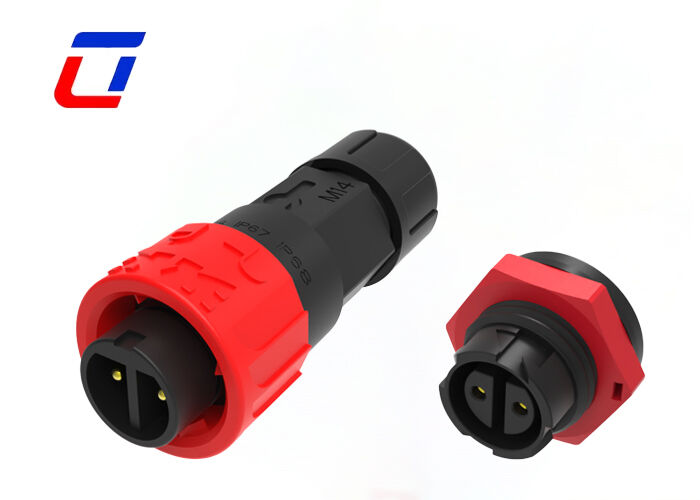

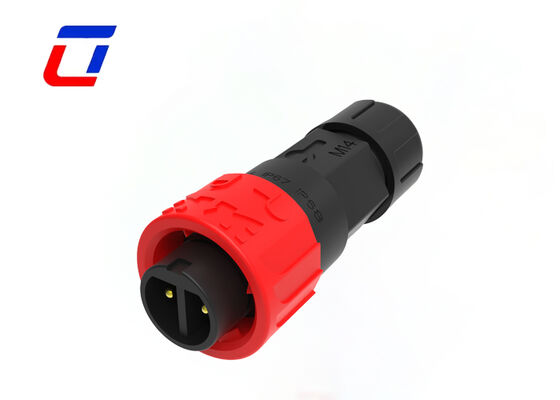

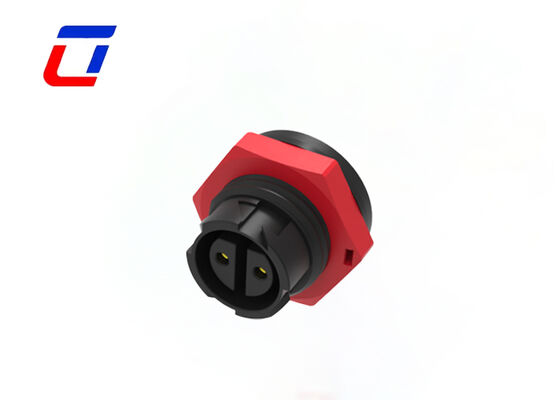

2 Pin Circular Power Connector M16 300V Waterproof Male Female Connector

Description of Industrial Waterproof Circular Connector

Premium PA66 Insulation Housing
Made of high-strength PA66 engineering plastic, with good insulation, high temperature resistance and anti-aging performance, ensuring safe and long-lasting use.

2-Pin Compact Power Design
Standard 2-pin structure dedicated for stable power transmission, low contact resistance, high conductivity, ideal for small power equipment and control circuits.

10A 300V Safe Electrical Rating
Rated current 10A, rated voltage 300V, suitable for low-voltage power supply systems and various indoor and outdoor electrical connection applications.

Standard M16 Circular Interface
Universal M16 size with high compatibility, easy for panel installation, equipment assembly and later maintenance.

Male & Female Plug-Socket Matching
Precision male and female connectors with stable docking, firm connection and strong anti-vibration performance, not easy to loose.

Wire-to-Board Connection Structure
Professional wire-to-board design, convenient for cable and PCB board connection, improving assembly efficiency and integration.

Main Feature

Push lock quick easy release system
Multi-core can be choosen: 2Pin, 3Pin, 4Pin, 5Pin, 2+4Pin, 7Pin, 8Pin
Field-installable variants: both wire-to-wire and wire-to-board configurations
High-current-rated waterproof connector: an ideal solution for prolonged operation up to 10A
Cable assembly services provided – customization is welcome
OEM/ODM partnerships are warmly accepted

Electrical Parameters
Number of Poles	2Pin waterproof connector
Current Rating	10A max
Voltage Rating	300VAC max
Durability Voltage	1500VAC @ 60 s.

Technical Parameters
Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Application industries

Communications Application
product coding machines
inventory product coding
inkjet systems
Solar System
industrial inkjet equipment
Electric power equipment
Laboratory forensic&pathology equipment
Communications equipment
Heavy machinery

Production Dimension

PA66 M16 300V 2 Pin Male Female Connector 10A Wire To Board Connector Types 0

More Technical Details

PA66 M16 300V 2 Pin Male Female Connector 10A Wire To Board Connector Types 1

FAQ

Q1:How can I get samples?

A1:It's my honor to offer you samples,and the freight should be paied by yourself.You can let me know your courier number and your detail address,Then I can send you sample at once.

Q2:Who is responsible for customs clearance? Do you provide necessary documents?

A2: We will provide complete customs clearance documents (commercial invoice, packing list, bill of lading, certification reports). Customs clearance fees and duties are borne by the buyer (EXW/FOB terms). We can assist with document preparation if needed.

Q3:What shipping methods do you offer? How long is the delivery time?

A3: We provide multiple shipping options: 1) Courier (DHL/UPS/FedEx): 3 - 7 working days for small parcels; 2) Air freight: 7 - 15 working days; 3) Sea freight: 20 - 45 working days. Delivery time varies by destination and shipping method.
