M25 3+9 Circular Multi Pin Connectors Quick Release Wire To Board Connector Waterproof

Produktdetails:

Herkunftsort:	China
Markenname:	Ulinkcon
Zertifizierung:	CE/Rohs
Modellnummer:	M25

Zahlung und Versand AGB:

Min Bestellmenge:	Verhandlung
Preis:	Verhandlungsfähig
Verpackung Informationen:	Kasten
Lieferzeit:	5 bis 8 Arbeitstage
Zahlungsbedingungen:	T/T,D/A,D/P,MoneyGram,L/C
Versorgungsmaterial-Fähigkeit:	100000 Paare pro Monat

Kontakt

Ausführliche Produkt-Beschreibung

Anzahl der Pins:	3+9 PIN	Wasserdichtigkeitsklasse:	IP67
Temperaturbereich:	-40℃~+105℃	Material:	Nylon
Verbindungsmodus:	Push-Lock-Draht zur Platine	Elektrische Funktionen:	Strom- und Signalübertragung

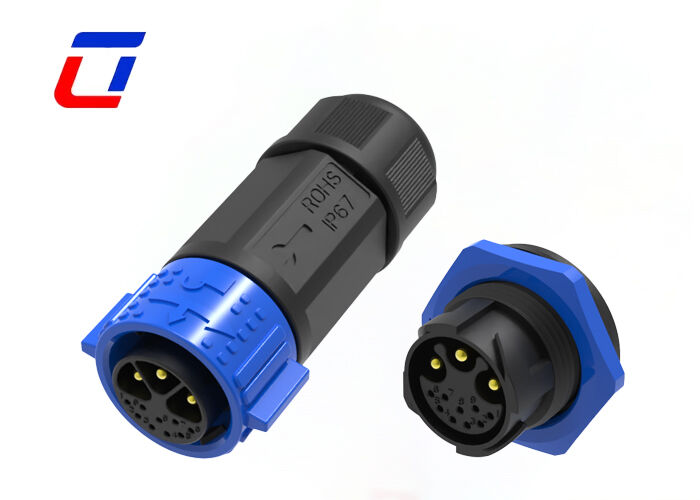

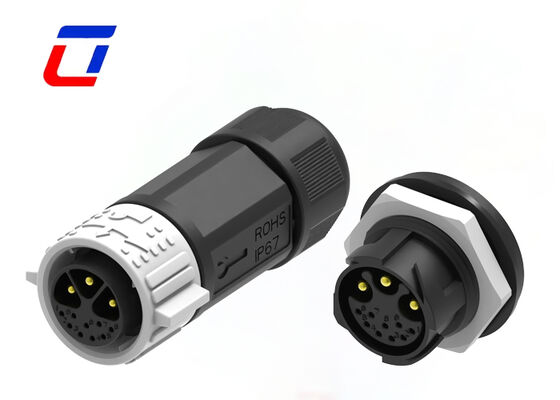

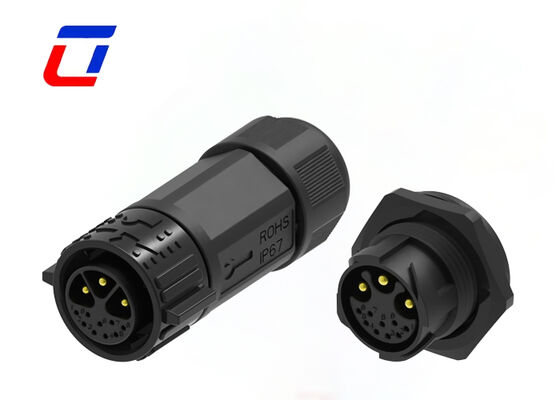

M25 3+9 Circular Multi Pin Connectors Quick Release Wire To Board Connector Waterproof

Product Overview

Multi Pin Connector Types Of 3+9 Pin M25 30A 300V Outdoor Waterproof Connector

Main Features

Push lock quick release system
Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin, 3+2Pin, 3+3Pin, 3+9Pin, 3+13Pin and 2+20Pin
Field assembly version: both wire to wire and wire to board options
Current rated 20A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Application Industries

Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Key Features

3+9 Pin Functional Subdivision: 3 pins carry main power, 9 pins support multi-channel signal transmission, replacing traditional connectors, reducing interfaces by 75% and wiring error to 0.
Quick-Lock Foolproof Design: Foolproof groove prevents pin damage, elastic buckle locks in 1 second without tools, enabling single-person outdoor installation and safer construction.
30A/300V Medium-Power Bearing: Fits outdoor medium-power equipment, 100% higher bearing capacity than small-current connectors.
IP67 Outdoor Protection: Triple sealing + weather-resistant housing resists harsh environments, suitable for long-term outdoor use like photovoltaics and security.
Low Loss & Anti-Interference: Oxygen-free copper gold-plated pins reduce loss; 9 signal pins with independent shielding, fit IoT remote data collection.

Technical Specifications

Product Type Features	Connector System: Cable-to-Board Sealable: Yes Connector & Contact Terminates To: Wire & Cable Circular Connector Type: Plug, Receptacle Shell Type: Plastic Shell Product Type: Connector Kit
Configuration Features	Number of Positions: 3+9 Number of Signal Positions: 9 Contacts Preloaded: Yes
Electrical Characteristics	Operating Voltage (VAC): 600V max. Operating Voltage (VDC): 600V max.
Body Features	Shell Material: PA66 Circular Connector Insulation Material Type: Low Fire Hazard Thermoplastic Hermetically Sealed: Yes Entry Style: Side Environmental Protection Type: Elastomer Sealed, Hermetically Sealed O-Ring Material: Elastomer Sealed, Hermetically Sealed Environmental Protection: Yes
Contact Features	Contact Current Rating (Max) (A): 15A max. Circular Connector Contact Type: Pin-Socket
Mechanical Attachment	Connector Mounting Type: Cable Mount (Free-Hanging) Mating Alignment Type: Keyed Mating Retention: With
Dimensions	Wire Size (AWG): 20AWG, 18AWG, 16AWG, 14AWG
Usage Conditions	Operating Temperature Range (°C): -40 ~105°C IP Water Sealing Level: IP67 IP Dust Sealing Level: 6
Industry Standards	UL Flammability Rating: UL 94V-0

Production Dimension

More Technical Details
