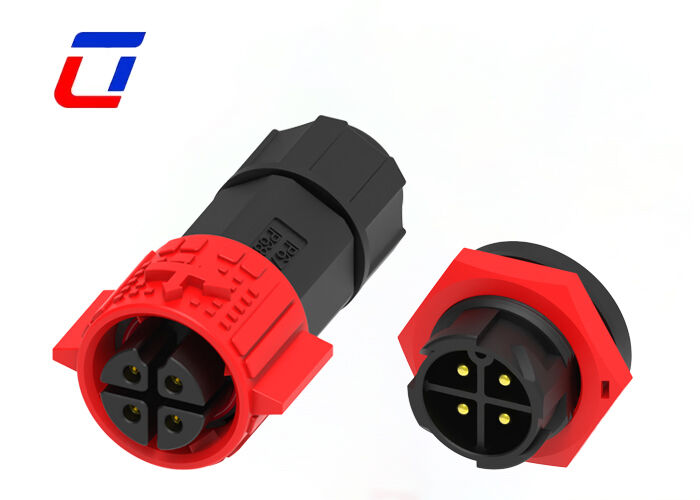

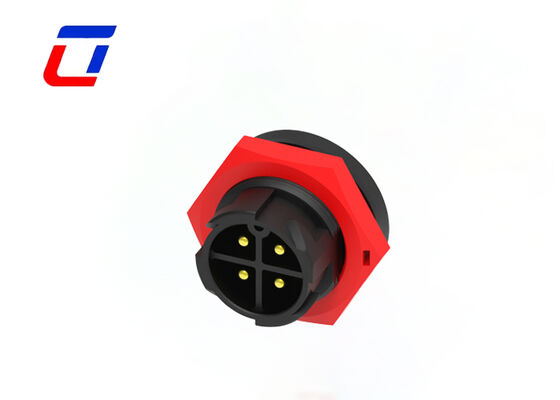

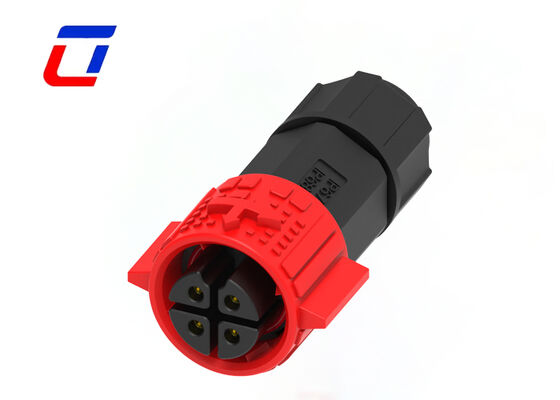

Name: 15A 4 Pin Male Female Connector M19 Wire To Board IP67 Waterproof Power Quick Connectors
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Startseite Produkte Wasserdichter Stecker-Sockel

15A 4 Pin Male Female Connector M19 Wire To Board IP67 Waterproof Power Quick Connectors

Produktdetails:

Herkunftsort:	China
Markenname:	Ulinkcon
Zertifizierung:	CE/Rohs/TUV/UL
Modellnummer:	M19

Zahlung und Versand AGB:

Min Bestellmenge:	Verhandlung
Preis:	Verhandlungsfähig
Verpackung Informationen:	1. Plastiktüte; 2. Karton; 3. Gemäß den Anforderungen des Kunden
Lieferzeit:	3~6 Werktage
Zahlungsbedingungen:	T/T, D/P, L/C, D/A, Western Union, MoneyGram
Versorgungsmaterial-Fähigkeit:	100.000 Paar pro Monat

Kontakt

Ausführliche Produkt-Beschreibung

Aktuelle Bewertung:	15A	Nennspannung:	300V
Steckertyp:	Schnellverbinder	Material:	Nylon
Farbe:	Rot Blau Weiß Schwarz Gelb	Flammwidrigkeitsklasse:	UL94-V0

15A 4 Pin Male Female Connector M19 Wire To Board IP67 Waterproof Power Quick Connectors

IP67 Waterproof M19 4 Pin Male To Female Outdoor Connector

Quick Description

Basic Parameters: Rated current 15A, 4-pin design, M19 model, supports male-female pairing, wire-to-board connection for stable and efficient power transmission
Waterproof & Dustproof Performance: IP67 protection grade - completely dustproof and can be immersed in 1m deep water for 30 minutes; double waterproof structure with housing sealing ring and pin sealing sleeve
Material & Craftsmanship: UV-resistant reinforced PA66 shell (-40℃ to 105℃); gold-plated brass pins with contact resistance ≤10mΩ for reduced power loss
Quick Connection Design: Push-lock quick release system with anti-misplug design for safe and efficient operation
Durability & Reliability: 10,000+ plug-in cycles; board-end pins with excellent folding resistance; CE, ROHS, TUV, UL certified
Applicable Scenarios: Outdoor lighting, solar systems, industrial inkjet equipment, electric power equipment, heavy machinery, communication equipment, sensor data collection

Main Features

Push lock quick release system
Multicore options: 2Pin, 3Pin, 4Pin, 5Pin for Power
3+2Pin, 3+3Pin, 3+4Pin, 3+5Pin, 3+9Pin and 2+20Pin for power signal combined
6Pin, 7Pin, 8Pin, 9Pin, 10Pin, 11Pin, 12Pin, 14Pin, 16Pin and 18Pin for signal available
Field assembly version: both wire to wire and wire to board options
Current rated 20A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Electrical Parameters

Number of Poles	4Pin
Current Rating	15A max.
Voltage Rating	300VAC max
Durability Voltage	1000VAC @ 60 s.

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Voltage Rating	600VAC max
Current Rating	15A max
Min Wire Size OD	3.0mm ~ 6.0mm
Max Wire Size OD	8.0mm ~ 10.0mm
Max. Cable Cross Section Area	0.5mm² ~ 2.5mm²

Application Industries

Growth Lights
Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Design Sketch

Frequently Asked Questions

Q: Are you a factory or trading company?

A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China

Q: Do you support product customization?

A: Yes, customization is available for specifications, colors, logos, and packaging. Please provide your detailed requirements, and we will quote accordingly with a sample confirmation process.

Q: How can I get samples?

A: We are pleased to offer samples, and the freight should be paid by the customer. Please provide your courier account number and detailed address, and we will send the sample immediately.

Q: How many materials you can provide?

A: We offer various materials for connectors and cables. We typically use PVC/Nylon material for connectors and PVC/Rubber/Silicone material for cables. We can also select materials according to your specific requirements.
