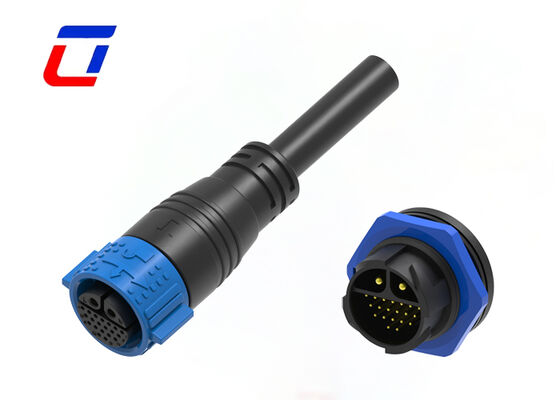

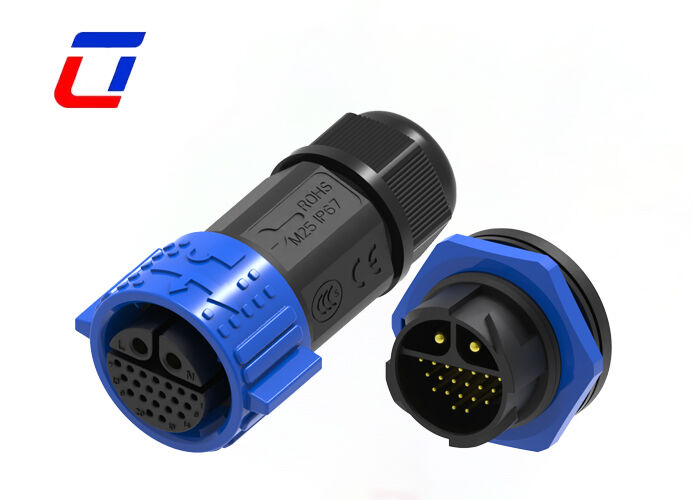

2+20 Pin LED Quick Release IP67 Wire To Board Connectors

M25 Power Signal Connector 2+20 Pin IP67 20A+5A Wire To Board Connector

Product Overview

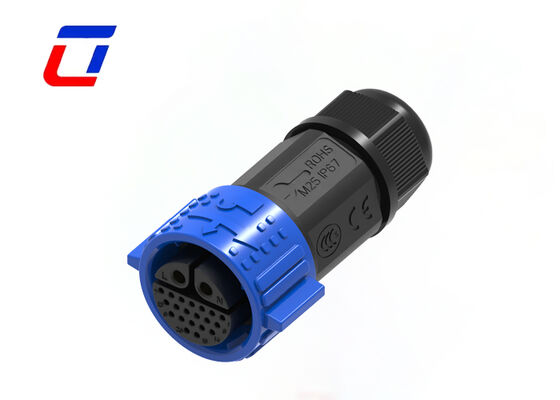

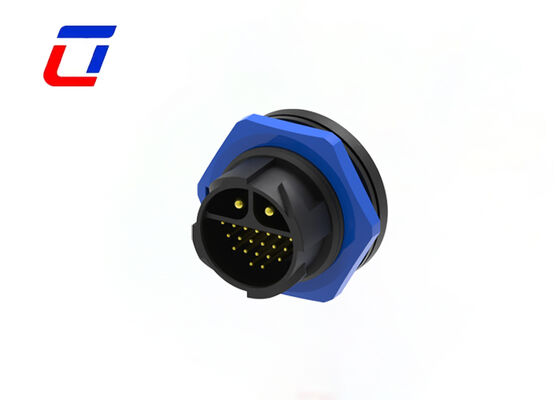

This M25 waterproof connector adopts a 2+20 pin integrated power and signal design, made of high-quality flame-retardant PA66 nylon. It integrates power and signal transmission functions with excellent outdoor waterproof, weather resistance and anti-aging performance. Specially designed for outdoor LED lighting and industrial control equipment.

Key Features

Accurate Specifications & Stable Dual Transmission: Featured with a 2Pin power plus 20Pin signal integrated structure, it realizes independent power and signal transmission without mutual interference. It supports high-current power supply and high-precision signal conduction, ensuring stable operation of various LED landscape lighting devices.

Premium PA66 Material, Flame Retardant & Weather Resistant: The connector housing adopts UL-certified PA66 engineering nylon with a UL94 V-0 flame retardant rating. It delivers excellent high and low temperature resistance, corrosion resistance and UV anti-aging performance, capable of resisting extreme outdoor environments such as acid rain and salt spray to extend service life effectively.

IP67 High-level Outdoor Waterproof Performance: Adopted high-quality silicone sealing gaskets for superior tightness, this connector reaches IP67 dustproof and waterproof grade. It can work stably in long-term outdoor environments such as open air, humidity and rain, preventing equipment failure caused by water infiltration and dust accumulation.

Industrial Durability & Easy Quick Installation: The pins are made of tin-plated brass with excellent conductivity, stable contact performance and long plugging service life. Equipped with standard M25 quick self-locking structure, it features easy installation, firm connection, shock resistance and anti-drop performance, which is widely compatible with most outdoor LED and industrial control supporting equipment.

Application Industries

Communications Equipment
Product Coding Machines & Inkjet Systems
Solar Systems
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Heavy Machinery
Industrial Inkjet Equipment

Technical Specifications

Electrical Parameters

Number of Poles	22pin wire to board connector
Current Rating	20A +5A
Voltage Rating	500VAC max
Durability Voltage	2500VAC @ 60 s

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Voltage Rating	600VAC max
Current Rating	40A max
Min Wire Size OD	6.5mm ~ 10mm
Max Wire Size OD	10.5mm ~ 18mm
Max Cable Cross Section Area	0.5mm² ~ 6.0mm²

Product Configuration

Product Dimension

Technical Details

Frequently Asked Questions

What is rated voltage?

Rated voltage, also known as operating voltage, depends on the connector insulation material used and the spacing between contact sizes. Some components or devices may not function properly below their rated voltage.

Are you a factory or trading company?

We are a factory. Located in Ulinkcon Industrial Park, Bao'an District,Shenzhen,China

How to buy your products?

You need to do as followings:

* Confirm Current Rating and Number of Contacts

* Confirm Assembly style

* Confirm Cable Wire guage

* Confirm Cable Length and Material.
