Name: M25 3 Pin 50A Wire To Board Power Connector IP67 Quick Lock Outdoor Waterproof Connector
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M25
Availability: InStock

Startseite Produkte Wasserdichtes Energie-Verbindungsstück

M25 3 Pin 50A Wire To Board Power Connector IP67 Quick Lock Outdoor Waterproof Connector

Produktdetails:

Herkunftsort:	China
Markenname:	Ulinkcon
Zertifizierung:	CE,TUV,UL,RoHS
Modellnummer:	M25

Zahlung und Versand AGB:

Min Bestellmenge:	Verhandlung
Preis:	Verhandlungsfähig
Verpackung Informationen:	Hochwertiger Exportkarton
Lieferzeit:	3~6 Werktage
Zahlungsbedingungen:	T/T,D/A,D/P,MoneyGram,L/C,Western Union
Versorgungsmaterial-Fähigkeit:	100000 Paare pro Monat

Kontakt

Ausführliche Produkt-Beschreibung

Anzahl der Pins:	3 PIN	Betriebsspannung:	500V
aktuell:	50A max. für Macht	Betriebstemperatur:	-40℃-+105℃
Flammwidrigkeitsklasse:	UL94-V0	Anwendung:	Neue Energie/Industrieautomation
Hervorheben:	M25 3 pin waterproof power connector , 50A wire to board connector IP67 , quick lock outdoor power connector

M25 3 Pin Male Female 50A High Current Industrial Wire To Board Connector

Industrial Circular Connector M25 3 Pin 50A IP67 Waterproof Connector

Widely used in outdoor photovoltaic power systems, energy storage equipment, high-power outdoor lighting, industrial control devices, new energy outdoor equipment, security power supply systems and various high-current outdoor engineering connection scenarios.

Application Industries

Communications Applications
Product Coding Machines
Inventory Product Coding Systems
Inkjet Systems
Solar Systems
Industrial Inkjet Equipment
Electric Power Equipment
Laboratory Forensic & Pathology Equipment
Communications Equipment
Heavy Machinery

Quick Details of 3 Pin IP67 Waterproof Connector

50A High Current Capacity & Stable Power Supply: Equipped with 3-pin high-power terminals made of thickened high-purity copper, the connector features low internal resistance and low heat generation. It supports long-term stable 50A high-current transmission, avoiding poor contact, overheating and power failure for high-power equipment.
IP67 Waterproof & Dustproof for All-Weather Outdoor Use: Adopting multi-layer premium silicone sealing structure, it reaches IP67 waterproof and dustproof grade. It effectively blocks rainwater, dew, dust and moisture, ensuring stable performance in rainy, dusty and humid outdoor conditions and reducing equipment failure rates.
Quick Lock Design for Fast Installation & Anti-loosening: The user-friendly quick-lock structure enables fast plug-and-lock installation without complicated tools. It provides tight biting and excellent vibration resistance, preventing loosening and falling off during equipment operation and outdoor vibration.
Flame Retardant & Super Weather Resistance: The high-strength engineering plastic housing features UL94 V0 flame retardant rating, excellent UV resistance, high & low temperature resistance, salt spray resistance and anti-corrosion performance, adapting to various global harsh outdoor climates and extending service life.
Professional Wire-to-Board Structure & Wide Compatibility: Standard wire-to-board design ensures precise matching between cables and PCB boards. It supports neat wiring, easy mass assembly and convenient maintenance, perfect for industrial automation, outdoor power systems and engineering supporting projects.

Technical Parameters

Contact Resistance	10 mΩ max
Insulation Structure	500 MΩ at 500VDC
Operating Temperature	-40°C ~ +105°C
IP Class	IP67 (1m / 30min) when mated
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Voltage Rating	600VAC max
Current Rating	50A max
Min Wire Size OD	6.5mm ~ 10mm
Max Wire Size OD	10.5mm ~ 18mm
Max Cable Cross Section Area	0.5mm² ~ 6.0mm²

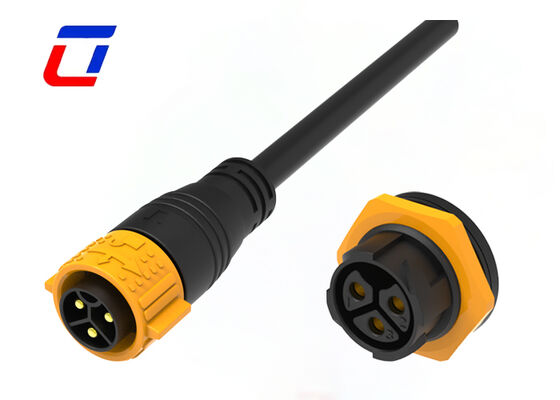

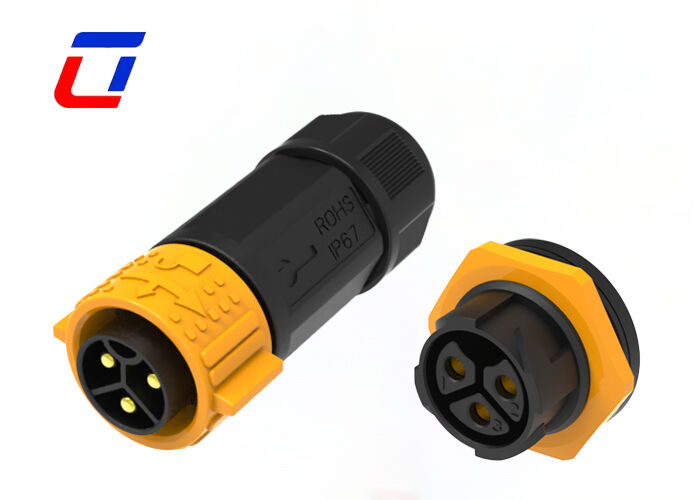

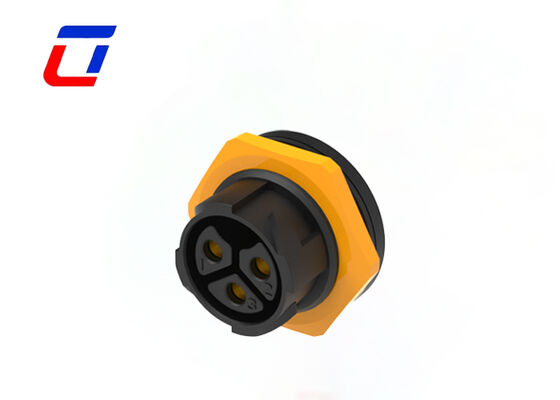

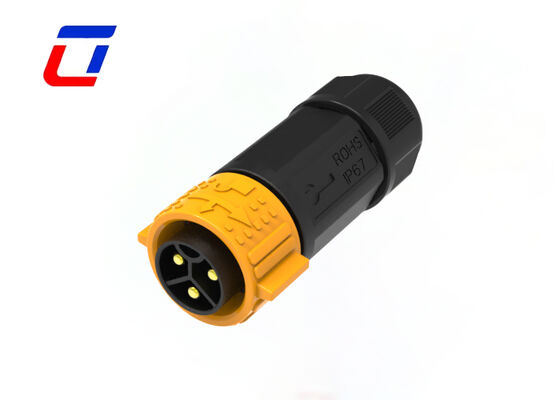

Product Images

Frequently Asked Questions

Q: Are you a factory or trading company?

A: We are a factory located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China.

Q: Do you support product customization?

A: Yes, customization is available for specifications, colors, and packaging. Please provide your detailed requirements, and we will quote accordingly with a sample confirmation process.

Q: How can I get samples?

A: We are pleased to offer samples, with freight costs covered by the customer. Please provide your courier account number and detailed address, and we will dispatch samples immediately.

Q: Can I have custom label?

A: Yes,of course,you can make you own private label and package,if you need to design the packaging ,we also have professionaldesigner to serve you.
