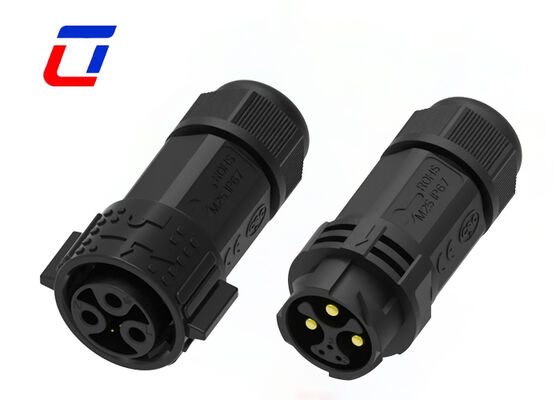

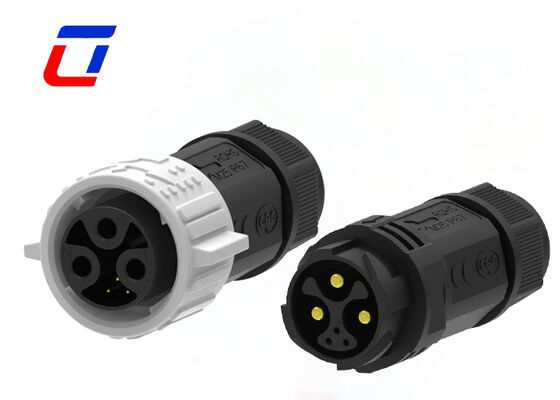

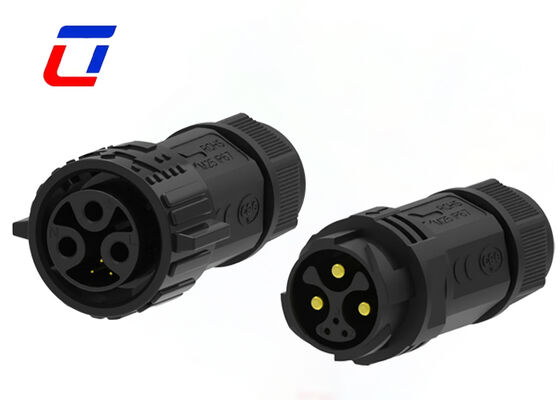

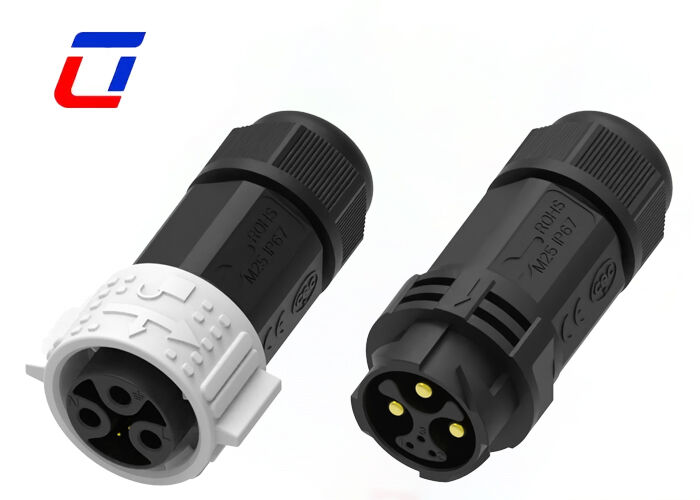

IP67 Circular M25 3+3 Pin Reliable PA66 Waterproof Connectors

This M25 multi-pin waterproof connector features an innovative 3+3 pin layout with 15A and 5A split power supply, adopting a professional male and female plug-in structure tailored for automotive power and signal connection scenarios. Made of high-strength PA66 nylon material, the connector integrates toughness, flame retardancy and impact resistance. With precision sealing technology, it delivers outstanding dustproof, waterproof and anti-vibration performance for vehicles. It perfectly meets the mixed high and low power supply demands of automotive electronic devices, serving as a professional waterproof connection accessory for automotive lighting and industrial control equipment.

Main Features

Push lock quick release system
Multic-core options: 2Pin, 3Pin, 4Pin, 5Pin, 3+2Pin, 3+3Pin, 3+9Pin, 3+13Pin and 2+20Pin
Field assembly version: both wire to wire and wire to board options
Current rated 20A for long time working
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Product Overview

3+3 Split Pin Design for Automotive Hybrid Power Supply: Adopting a unique 6-pin grouped arrangement, this connector divides power transmission into 15A high-current main power via 3 pins and 5A low-current auxiliary power via another 3 pins. The independent strong and weak current circuits generate no mutual interference, accurately meeting the diversified power demands of vehicle main power supply, signal control and auxiliary functions, and ensuring more stable operation of automotive equipment.
Automotive Anti-vibration & Precise Male-to-Female Mating: Equipped with M25 self-locking male and female docking structure, the connector supports smooth plugging and precise alignment with a tight fit after locking. Optimized for bumpy and vibrating vehicle operating conditions, it effectively avoids loosening, poor contact and power interruption, fully adapting to the continuous dynamic working environment during vehicle driving.
Premium PA66 Material for Superior Automotive Weather Resistance: The housing is made of original automotive-grade flame-retardant PA66 nylon, featuring excellent impact resistance, deformation resistance and wide temperature tolerance. It can withstand high temperature in engine compartments, low temperature in winter and drastic ambient temperature changes, while delivering outstanding oil resistance and anti-aging performance to adapt to complex automotive working scenarios.
Full Waterproof & Dustproof Sealing Eliminates Circuit Hidden Dangers: Built with high-performance waterproof sealing gaskets for full-angle gapless fitting, the connector effectively blocks rainwater, car washing water, dust and oil contamination from entering the connection area. It prevents common automotive electrical faults such as short circuits, poor contact and line corrosion, significantly improving the operational safety and service life of vehicle equipment.
Lightweight Integrated Structure for Easy Installation & Wide Adaptability: Featuring a compact and integrated structure with a small footprint, this connector is perfectly suitable for narrow installation spaces inside vehicles. Adopting standard wiring specifications, it is widely compatible with most vehicle modification devices, automotive lighting and intelligent electronic control systems, facilitating mass assembly and daily maintenance.

Technical Specifications

Connector System	Cable-to-Cable / Board
Sealable	Yes
Connector & Contact Terminates To	Wire & Cable
Circular Connector Type	Plug, Receptacle
Shell Type	Plastic Shell
Product Type	Connector Kit
Number of Positions	3+3
Number of Signal Positions	3
Contacts Preloaded	Yes
Operating Voltage (VAC)	600V max.
Operating Voltage (VDC)	600V max.
Shell Material	PA66
Circular Connector Insulation Material Type	Low Fire Hazard Thermoplastic
Hermetically Sealed	Yes
Entry Style	Side
Environmental Protection Type	Elastomer Sealed, Hermetically Sealed
O-Ring Material	Elastomer Sealed, Hermetically Sealed
Environmental Protection	Yes
Contact Current Rating (Max) (A)	15A max.
Circular Connector Contact Type	Pin-Socket
Connector Mounting Type	Cable Mount (Free-Hanging)
Mating Alignment Type	Keyed
Mating Retention	With
Wire Size (AWG)	20AWG, 18AWG, 16AWG, 14AWG
Operating Temperature Range (°C)	-40 ~105°C
IP Water Sealing Level	IP67
IP Dust Sealing Level	6
UL Flammability Rating	UL 94V-0

Application Industries

Communications Application
Product coding machines
Inventory product coding
Inkjet systems
Solar System
Industrial inkjet equipment
Electric power equipment
Laboratory forensic & pathology equipment
Communications equipment
Heavy machinery

Production Dimension

Technical Details

Frequently Asked Questions

What is rated voltage?

Rated voltage, also known as operating voltage, depends primarily on the connector insulation material used and the spacing between contact sizes. Some components or devices may not function properly when operated below their rated voltage.

What is rated Current?

Rated current, also known as operating current. When operated below the rated current with proper voltage, connectors generally work properly. During connector design, thermal considerations ensure the connector meets rated current requirements, as current flow generates heat due to conductor resistance and contact resistance.

Can I have custom label?

Yes,of course,you can make you own private label and package,if you need to design the packaging ,we also have professionaldesigner to serve you.
