Name: 20A M25 5 Pin Quick Lock Electrical Connectors IP67 Male Female Wire Waterproof Connectors
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M25
Availability: InStock

Startseite Produkte Wasserdichtes Kreislaufanschluss

20A M25 5 Pin Quick Lock Electrical Connectors IP67 Male Female Wire Waterproof Connectors

Produktdetails:

Herkunftsort:	China
Markenname:	Ulinkcon
Zertifizierung:	CE/Rohs/TUV/UL
Modellnummer:	M25

Zahlung und Versand AGB:

Min Bestellmenge:	Verhandlung
Preis:	Verhandlungsfähig
Verpackung Informationen:	Hochwertiger Exportkarton
Lieferzeit:	3 bis 6 Arbeitstage
Zahlungsbedingungen:	T/T,D/A,D/P,MoneyGram,L/C
Versorgungsmaterial-Fähigkeit:	100000 Paare pro Monat

Kontakt

Ausführliche Produkt-Beschreibung

Anzahl der Pins:	5Pin 20A	Nennspannung:	300V
Geschlecht:	Stecker/Buchse	Farbe:	Grün Blau Rot
Schutzstufe:	IP67	Flammwidrigkeitsklasse:	UL94-V0
Hervorheben:	20A waterproof electrical connectors , M25 5 pin quick lock connectors , IP67 male female wire connectors

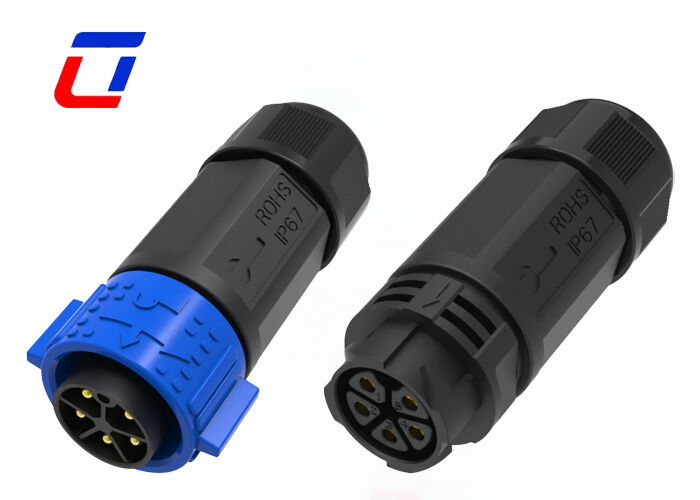

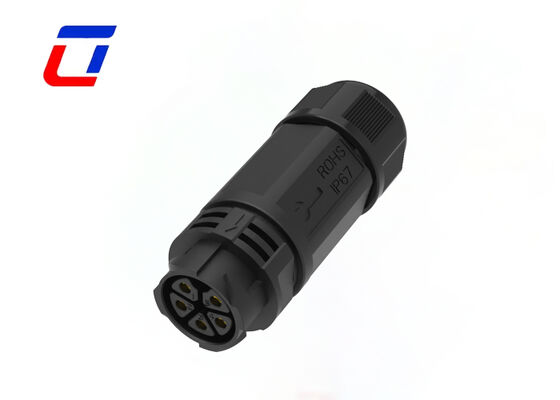

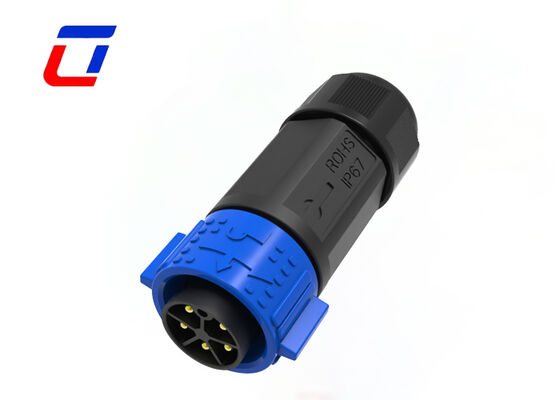

M25 5-Pin Waterproof Bulkhead Connector

The M25 5Pin 20A Quick Lock Waterproof Connector is a versatile integrated electrical connector designed for combined power and signal transmission.

Product Overview

5-Pin Universal Integrated Layout: The balanced 5-pin configuration supports flexible power supply and low-volume signal transmission for various electrical devices. With uniform current distribution and stable load performance, it safely handles continuous 20A current output without overheating, perfectly matching the connection demands of medium and small industrial equipment.
Tool-Free Quick Lock Self-Locking Structure: Featured with elastic buckle self-locking design, the connector automatically fastens after insertion without twisting or tools. It provides clear locking feedback to avoid incomplete connection and poor contact, greatly improving working efficiency during mass wiring and routine maintenance.
20A Stable Current Load & Low Power Loss: Built with thickened high-purity brass terminals, the connector ensures low resistance and low heat generation. It maintains stable voltage output and continuous power transmission under long-term 20A rated load, ensuring safer and more reliable operation of electrical equipment.
IP67 Full Sealing Protection for Harsh Environments: Adopting high-elastic integrated silicone sealing, the connector achieves completely tight fitting after locking. It effectively resists rainwater, moisture, dust and slight oil contamination, ensuring stable all-weather performance in open-air, workshop and equipment cabin scenarios.
Vibration-Resistant & Industrial-Grade Durability: Optimized buckle clamping force prevents loosening caused by long-term mechanical vibration and equipment jitter. The robust housing features excellent impact resistance, UV aging resistance and temperature tolerance, extending service life in complex industrial and outdoor environments.

Key Features

Push-lock quick release system for tool-free operation
Multiple pin configurations available: 2Pin, 3Pin, 4Pin, 5Pin, 3+2Pin, 3+3Pin, 3+9Pin, 3+13Pin, 5+2Pin, and 2+20Pin
Field assembly versions: wire-to-wire and wire-to-board options
High-current rated waterproof connector suitable for continuous 20A operation
Cable assembly service supported with customization options
OEM/ODM services welcome

Electrical Specifications

Parameter	Specification
Number of Poles	5Pin waterproof connector
Current Rating	20A maximum
Voltage Rating	300VAC maximum
Durability Voltage	1500VAC @ 60 seconds

Technical Specifications

Parameter	Specification
Contact Resistance	10 mΩ maximum
Insulation Resistance	500 MΩ at 500VDC
Operating Temperature	-40°C to +105°C
IP Rating	IP67 (1 meter / 30 minutes)
Mold Material	PA66
Contact/Terminal Material	Gold Plated Brass
Seal Material	Silicone

Operation Parameters

Parameter	Specification
Voltage Rating	600VAC maximum
Current Rating	30A maximum
Minimum Wire Size OD	6.5mm - 10mm
Maximum Wire Size OD	10.5mm - 18mm
Maximum Cable Cross Section Area	0.5mm² - 6.0mm²

Application Industries

Communications equipment
Product coding machines and inkjet systems
Inventory product coding equipment
Industrial inkjet equipment
Solar power systems
Electric power equipment
Laboratory forensic & pathology equipment
Heavy machinery

Production Dimensions

Technical Details
