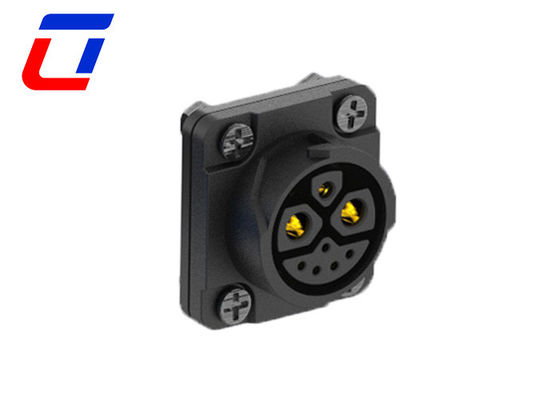

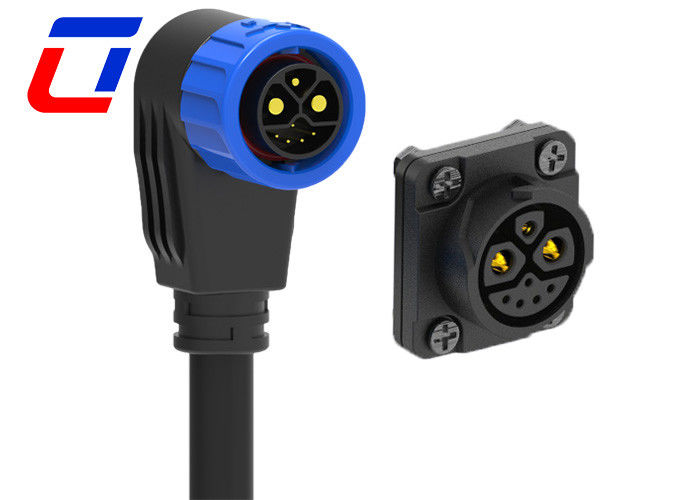

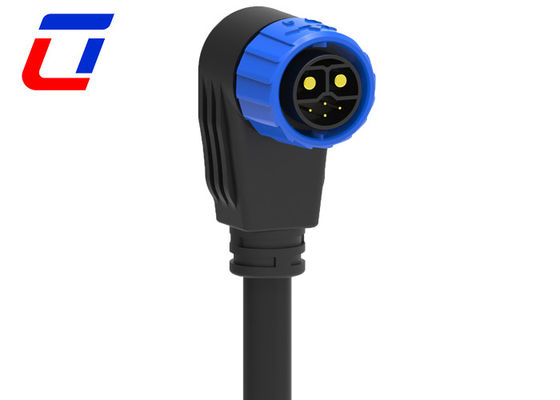

1 Grounding 2 Power 5 Data M23 IP67 Waterproof Connector Push Locking
Product Overview
M23 Industrial Plug Socket 50A 8 Multi Pin Connector Waterproof
Application Industries
- Growth Lights
- Communications Application
- Product Coding Machines
- Inventory Product Coding
- Inkjet Systems
- Solar System
- Industrial Inkjet Equipment
- Electric Power Equipment
- Laboratory Forensic & Pathology Equipment
- Communications Equipment
- Heavy Machinery
Technical Features
1 Grounding 2 Power 3 Data clear distribution, adapting to actual functional needs: Adopting precise functional partition design of 1 path of grounding, 2 paths of power supply and 3 paths of data, fully fitting the actual operation logic of outdoor equipment.
Separate transmission of grounding-power-data, ensuring practical operation stability: Based on the independent channel design of 1 grounding + 2 power supply + 3 data, it can realize complete separation of grounding protection, power supply, and data transmission.
Focus on practical applications in multiple industries, wide scene adaptability: Widely used in practical scenarios such as outdoor industrial automation, security monitoring, environmental monitoring, and new energy outdoor equipment.
Electrical Parameters
| Number of Poles |
8pin waterproof connector |
| Current Rating |
50+15A +5Amax. |
| Voltage Rating |
300VAC max |
| Durability Voltage |
1500VAC @ 60 s. |
Technical Parameters
| Contact Resistance |
10 mΩ max |
| Insulation Structure |
500 MΩ at 500VDC |
| Operating Temperature |
-40°C ~ +105°C |
| IP Class |
IP67 (1m / 30min) when mated |
| Mold Material |
PA66 |
| Contact/Terminal Material |
Gold Plated Brass |
| Seal Material |
Silicone |
Operation Parameters
| Voltage Rating |
600VAC max |
| Current Rating |
50A max |
| Min Wire Size OD |
3.0mm ~ 6.0mm |
| Max Wire Size OD |
8.0mm ~ 16.0mm |
| Max Cable Cross Section Area |
0.5mm² ~ 10.0mm² |
Frequently Asked Questions
Q1: Are you a factory or trading company?
A: We are a factory. Located in Ulinkcon Industrial Park, Bao'an District, Shenzhen, China
Q2: Are your products certified? What certifications do you have?
A: All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.
Q3: What payment methods do you accept?
A: We support mainstream international payment methods: T/T (Telegraphic Transfer), L/C (Letter of Credit), PayPal, and West Union. For large orders, 30% down payment + 70% balance before shipment is our standard term.
Q4: How many materials you can provide?
A: There's some different materials from connector and cable, we usually use PVC/Nylon material to product connector, PVC/Rubber/Silicone material was used in cable. Of course we can also according to your requirements to choose the material.
