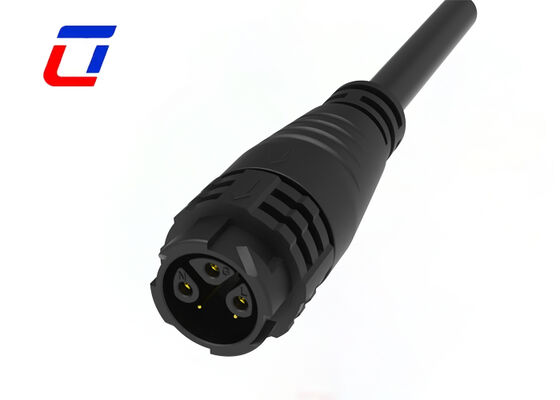

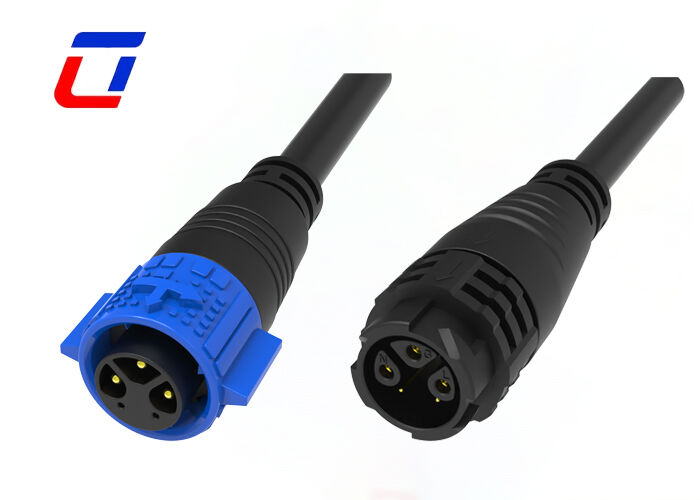

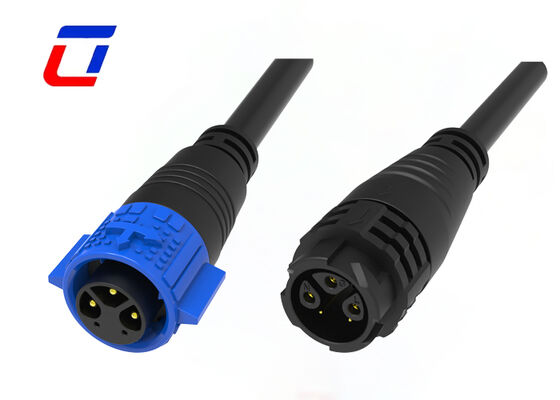

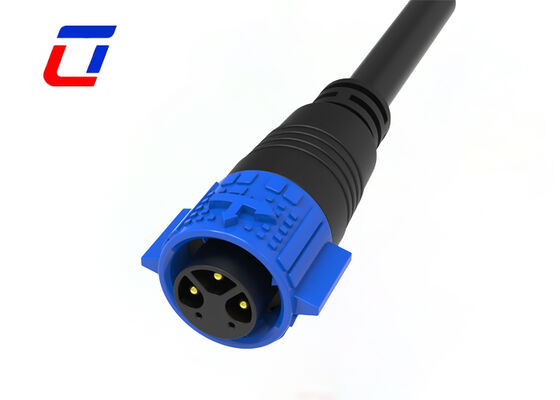

Name: M19 IP67 3+2 Pin Waterproof Connector 300V Wire To Wire Connector Types
Brand: Shenzhen Ulinkcon Technology Co., Ltd.
SKU: M19
Availability: InStock

Startseite Produkte Multi Pin Connectors Waterproof

M19 IP67 3+2 Pin Waterproof Connector 300V Wire To Wire Connector Types

Produktdetails:

Herkunftsort:	China
Markenname:	Ulinkcon
Zertifizierung:	CE/Rohs
Modellnummer:	M19

Zahlung und Versand AGB:

Min Bestellmenge:	Verhandlung
Preis:	Verhandlungsfähig
Verpackung Informationen:	Kasten
Lieferzeit:	5 bis 8 Arbeitstage
Zahlungsbedingungen:	T/T,D/A,D/P,MoneyGram,L/C
Versorgungsmaterial-Fähigkeit:	100000 Paare pro Monat

Kontakt

Ausführliche Produkt-Beschreibung

Anzahl der Pins:	3+2PIN	Aktuell:	15A
Wasserdichtigkeitsklasse:	IP67	Temperaturbereich:	-40℃~+105℃
Farbe:	Schwarz Blau Weiß Rot Gelb	Flammwidrigkeitsklasse:	UL94-V0
Hervorheben:	M19 waterproof wire connector , 3+2 pin IP67 connector , 300V waterproof multi pin connector

Multi Pin Male Female Connector M19 3+2 Pin Low Current Power Data Connector

Quick Details of 5Pin waterproof connector

Core Electrical Parameters: Adopts M19 standard circular structure, innovatively designed with 3+2 Pin composite channels (3 power channels + 2 signal channels for independent transmission), rated voltage 300V, supports Wire To Wire direct connection mode without additional adapters, suitable for direct cable connection needs of medium and low voltage systems

Protection & Weather Resistance: Strictly complies with IP67 industrial protection standard, featuring Level 6 complete dustproof and Level 7 temporary water immersion protection (1m water depth for 30 minutes), equipped with professional rubber sealing gaskets, which can effectively isolate rainwater, moisture and dust erosion, suitable for outdoor, humid and dusty industrial environments

Structural Design Highlights: The shell is made of high-weather-resistant flame-retardant engineering plastic, with excellent aging resistance and impact resistance; the pin core is made of brass gold-plated material, accurately matching the 3+2 Pin layout, with clear plug-in positioning, convenient and efficient Wire To Wire connection mode, firm connection with excellent anti-vibration and anti-fall performance, meeting the needs of frequent industrial use

Transmission Performance Advantages: Optimized for 300V medium and low voltage transmission, 3+2 Pin independent channel design avoids mutual interference between power and signal, extremely low transmission loss, which can stably ensure the synchronization of equipment power supply and signal feedback, eliminating the risk of overload or signal distortion

Customization & Adaptability: Supports personalized adaptation for Wire To Wire scenarios, can customize cable diameter matching specifications, sealing level enhancement, shell color, etc., and provides sample testing services to meet the exclusive connection needs of equipment in different industries, covering the whole process from scheme adaptation to batch delivery

Application Scenarios: Widely used in industrial automation cable direct connection, outdoor lighting power line docking, new energy equipment signal/power composite connection, security monitoring line extension, medical medium and low voltage equipment cable docking and other scenarios requiring IP67 protection and Wire To Wire direct connection

Main Features

Push lock quick release system
Multic-core options: 2Pin,3Pin,4Pin,5Pin for Power
3+2Pin,3+3Pin,3+4Pin,3+5Pin,3+9Pin and 2+20Pin for power signal combined
6Pin,7Pin,8Pin,9Pin,10Pin,11Pin,12Pin,14Pin,16Pin and 18Pin for signal available
Field assembly version:both wire to wire and wire to board options
Cable assembly service supported, welcome to custom
OEM/ODM welcome

Product Type Features
Connector System	Cable-to-Cable
Sealable	Yes
Connector & Contact Terminates To	Wire & Cable
Circular Connector Type	Plug, Receptacle
Shell Type	Plastic Shell
Product Type	Connector Kit

Electrical Characteristics
Number of Poles	3+2
Current Rating	15A max
Voltage Rating	600VAC max
Durability Voltage	2500VAC @ 60 s.

Body Features
Shell Material	PA66
Circular Connector Insulation Material Type	Low Fire Hazard Thermoplastic
Hermetically Sealed	Yes
Entry Style	Side
Environmental Protection Type	Elastomer Sealed, Hermetically Sealed
O-Ring Material	Elastomer Sealed, Hermetically Sealed
Environmental Protection	Yes

Usage Conditions
Operating Temperature Range (°C)	-40 ~105°C
IP Water Sealing Level	IP67
IP Dust Sealing Level	6
Operation/Application
Durability Rating (Cycles)	250, 251
Industry Standards
UL Flammability Rating	UL 94V-0

Application industries

Communications Application
product coding machines
inventory product coding
inkjet systems
Solar System
industrial inkjet equipment
Electric power equipment
Laboratory forensic&pathology equipment
Communications equipment
Heavy machinery

Production Dimension

More Technical Details

FAQ

Q1:Do you accept other payment currencies besides USD?

A1:Our default currency is USD, but we can also accept EUR, GBP, or other major currencies. Please confirm the exchange rate with our sales team when placing the order.

Q2:Is there a discount for large - quantity orders?

A2: Yes, we offer tiered discounts for bulk orders. The more you order, the more competitive the price. Please inform us of your expected quantity for a customized quotation.

Q3:Are your products certified? What certifications do you have?

A3:All our products are certified by RoHS, CE, and other international standards. Specific certifications (e.g., FCC, UL) can be provided upon request based on your target market.

Größe und Tag:

Ansprechpartner: Miss. Gina

Telefon: +86 075523019434
