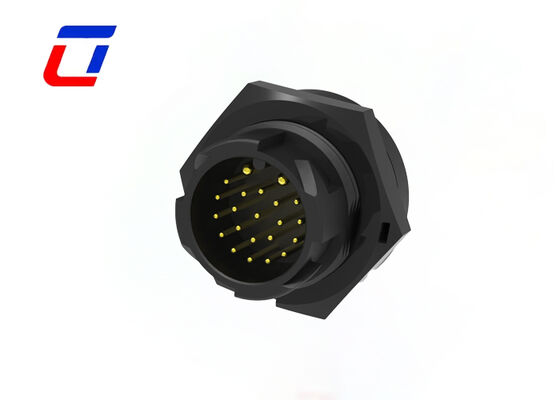

M19 2+20 Pin LED Light Connector Quick Connect Male Female Cable Connector
Product Overview
Waterproof multi 2 pin power connectors with M19 20 pin data connector designed for reliable performance in demanding environments.
Core Specifications & Dual Current Adaptation
2+20Pin precision layout separates power and signal channels. M19 standard circular interface with full male-female connectors supports 15A+5A dual rated current output. 15A for high-power supply, 5A for low-power signal transmission, meeting multi-load collaboration. Features precise docking, stable contact impedance, cable compatibility and efficient installation.
High-Level Waterproof Protection
IP67 waterproof and dustproof, integrated sealed housing with high-performance rubber ring resists rain, splashes, dust and short-term immersion. Eliminates short circuit and leakage risks in dual current transmission, ensuring stability in outdoor, humid and complex environments.

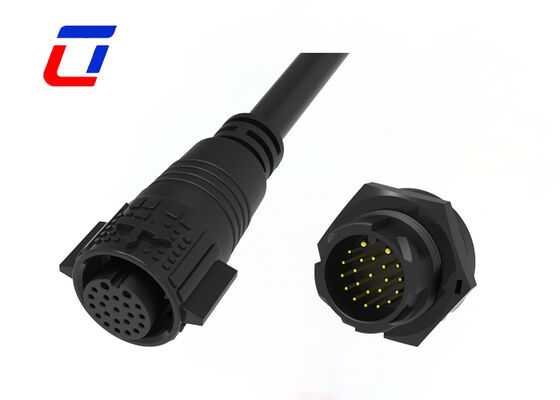

Secure Male-Female Plug-In Design
Precise snap-on structure with automatic locking after insertion, ensuring firm connection against vibration and pulling. Easy unlocking without professional tools facilitates maintenance, suitable for frequent plugging scenarios.
Application Industries
- Growth Lights
- Communications Application
- Product Coding Machines
- Inventory Product Coding
- Inkjet Systems
- Solar System
- Industrial Inkjet Equipment
- Electric Power Equipment
- Laboratory Forensic & Pathology Equipment
- Communications Equipment
- Heavy Machinery
Electrical Parameters
| Number of Poles |
2+20 pin waterproof connector |
| Current Rating |
15A+5A |
| Voltage Rating |
300VAC max |
| Durability Voltage |
1500VAC @ 60 s |
Technical Parameters
| Contact Resistance |
10 mΩ max |
| Insulation Structure |
500 MΩ at 500VDC |
| Operating Temperature |
-40°C ~ +105°C |
| IP Class |
IP67 (1m / 30min) when mated |
| Mold Material |
PA66 |
| Contact/Terminal Material |
Gold Plated Brass |
| Seal Material |
Silicone |
Operation Parameters
| Voltage Rating |
600VAC max |
| Current Rating |
20A max |
| Min Wire Size OD |
3.0mm ~ 6.0mm |
| Max Wire Size OD |
8.0mm ~ 10.0mm |
| Max Cable Cross Section Area |
0.5mm² ~ 2.5mm² |
Design Sketch
